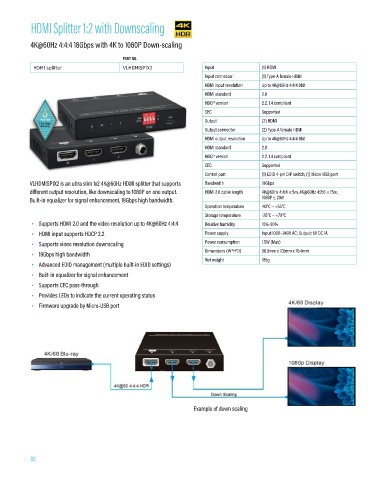

HDMI Splitter 1:2 with Downscaling

4K@60Hz 4:4:4 18Gbps with 4K to 1080P Down-scaling

PART NO.
HDMI splitter VLHDMISP1X2 Input (1) HDMI
Input connector (1) Type-A female HDMI
HDMI input resolution Up to 4K@60Hz 4:4:4 8bit
HDMI standard 2.0
HDCP version 2.2, 1.4 compliant
Vivolink keeps your system running CEC Supported
If you face any problems with your Vivolink product, we
immediately send you a new one. No need to wait for a Output (2) HDMI
Free Swap faulty product to be repaired.
Warranty
This is part of our Premium Professional Service. Output connector (2) Type-A female HDMI
HDMI output resolution Up to 4K@60Hz 4:4:4 8bit
HDMI standard 2.0
HDCP version 2.2, 1.4 compliant
CEC Supported
Control part (1) EDID 4-pin DIP switch, (1) Micro-USB port
VLHDMISP1X2 is an ultra slim 1x2 4K@60Hz HDMI splitter that supports Bandwidth 18Gbps
different output resolution, like downscaling to 1080P on one output. HDMI 2.0 cable length 4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m,
Built-in equalizer for signal enhancement, 18Gbps high bandwidth. 1080P ≤ 20m
Operation temperature -10°C ~ +55°C
Storage temperature -25°C ~ +70°C
• Supports HDMI 2.0 and the video resolution up to 4K@60Hz 4:4:4 Relative humidity 10%-90%
• HDMI input supports HDCP 2.2 Power supply Input:100V~240V AC; Output: 5V DC 1A
• Supports video resolution downscaling Power consumption 1.5W (Max)
• 18Gbps high bandwidth Dimensions (W*H*D) 96.0mm x 17.6mm x 70.4mm
Net weight 185g
• Advanced EDID management (multiple built-in EDID settings)
• Built-in equalizer for signal enhancement
• Supports CEC pass-through
• Provides LEDs to indicate the current operating status
• Firmware upgrade by Micro-USB port

Example of down scaling
