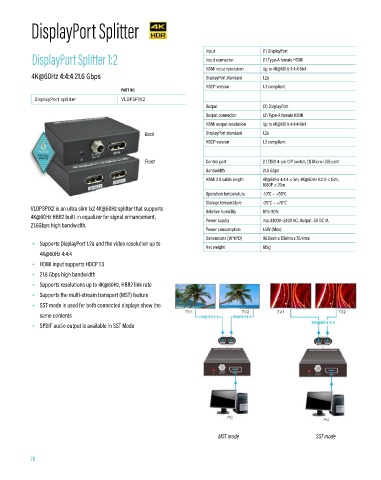

DisplayPort Splitter

Input (1) DisplayPort
DisplayPort Splitter 1:2 Input connector (1) Type-A female HDMI

HDMI input resolution Up to 4K@60Hz 4:4:4 8bit
4K@60Hz 4:4:4 21.6 Gbps DisplayPort standard 1.2a
HDCP version 1.3 compliant
PART NO.
DisplayPort splitter VLDPSP1X2
Output (2) DisplayPort
Output connector (2) Type-A female HDMI
HDMI output resolution Up to 4K@60Hz 4:4:4 8bit
Back DisplayPort standard 1.2a

Vivolink keeps your system running HDCP version 1.3 compliant
If you face any problems with your Vivolink product, we
immediately send you a new one. No need to wait for a
Free Swap faulty product to be repaired.
Warranty
This is part of our Premium Professional Service. Front Control part (1) EDID 4-pin DIP switch, (1) Micro-USB port
Bandwidth 21.6 Gbps
HDMI 2.0 cable length 4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m,
1080P ≤ 20m
Operation temperature -10°C ~ +55°C
Storage temperature -25°C ~ +70°C
VLDPSP1X2 is an ultra slim 1x2 4K@60Hz splitter that supports Relative humidity 10%-90%
4K@60Hz HBR2 built-in equalizer for signal enhancement, Power supply Input:100V~240V AC; Output: 5V DC 1A
21.6Gbps high bandwidth.
Power consumption 1.5W (Max)
Dimensions (W*H*D) 96.0mm x 17.6mm x 70.4mm
• Supports DisplayPort 1.2a and the video resolution up to
Net weight 185g
4K@60Hz 4:4:4
• HDMI input supports HDCP 1.3
• 21.6 Gbps high bandwidth
• Supports resolutions up to 4K@60Hz, HBR2 link rate
• Supports the multi-stream transport (MST) feature
• SST mode is used for both connected displays show the
same contents
• SPDIF audio output is available in SST Mode

MST mode SST mode
