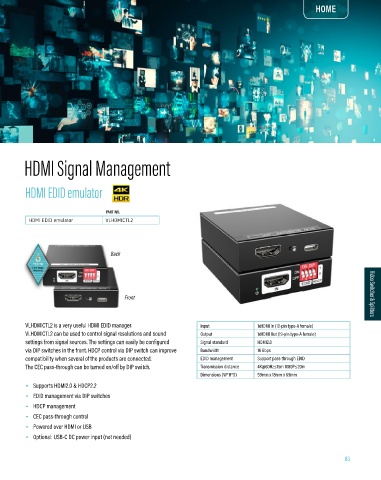

Page 85 - Vivolink_Catalogue_2024

HOME

HDMI Signal Management

HDMI EDID emulator

PART NO.
HDMI EDID emulator VLHDMICTL2

Back
Vivolink keeps your system running
If you face any problems with your Vivolink product, we
immediately send you a new one. No need to wait for a
Free Swap faulty product to be repaired.
Warranty
This is part of our Premium Professional Service.
Front Video Switcher & Splitters

VLHDMICTL2 is a very useful HDMI EDID manager. Input 1xHDMI In (19-pin type-A female)
VLHDMICTL2 can be used to control signal resolutions and sound Output 1xHDMI Out (19-pin type-A female)
settings from signal sources. The settings can easily be configured Signal standard HDMI2.0
via DIP switches in the front. HDCP control via DIP switch can improve Bandwidth 18 Gbps
compatibility when several of the products are connected. EDID management Support pass-through EDID
The CEC pass-through can be turned on/off by DIP switch. Transmission distance 4K@60Hz≤15m 1080P≤20m
Dimensions (W*H*D) 59mm x 18mm x 69mm
• Supports HDMI2.0 & HDCP2.2
• EDID management via DIP switches
• HDCP management
• CEC pass-through control
• Powered over HDMI or USB
• Optional: USB-C DC power input (not needed)
