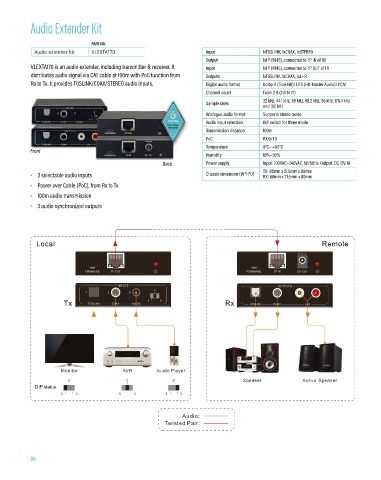

Audio Extender Kit

PART NO.
Audio extender kit VLEXTA170 Input 1xTOSLINK, 1xCOAX, 1xSTEREO
Output 1xTP (RJ45), connected to TP IN of RX
VLEXTA170 is an audio extender, including transmitter & receiver. It Input 1xTP (RJ45), connected to TP OUT of TX
distributes audio signal via CAT cable at 100m with PoC function from Outputs 1xTOSLINK, 1xCOAX, 1xL+R
Rx to Tx. It provides TOSLINK/COAX/STEREO audio inputs. Digital audio format Dolby D (True HD)/ DTS (HD-Master Audio)/ PCM
Channel count From 2-8 (2.0 to 7.1)

Sample rates 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz
and 192 kHz
Vivolink keeps your system running
Analogue audio format Supports stereo mode
If you face any problems with your Vivolink product, we
Audio input selection
immediately send you a new one. No need to wait for a DIP switch for three mode
Free Swap faulty product to be repaired.
Warranty
Transmission distance
This is part of our Premium Professional Service. 100m
PoC RX to TX
Temperature 0°C~ +50°C
Front
Humidity 10%~90%
Back Power supply Input: 100VAC~240VAC, 50/60Hz. Output: DC 12V, 1A
• 3 selectable audio inputs Chassis cimension (W*H*D) TX: 88mm x 21.5mm x 80mm
RX: 88mm x 21.5mm x 80mm
• Power over Cable (PoC), from Rx to Tx
• 100m audio transmission
• 3 audio synchronized outputs

Local Remote

FIRMWARE TP OUT FIRMWARE TP IN DC 12V
INPUTS OUTPUTS
2
1 2 3
Tx TOSLINK COAX AUDIO 1 3 Rx TOSLINK COAX L+R

Monitor AVR Audio Player
2 2 2 Speaker Active Speaker
DIP status
1 3 1 3 1 3

Audio:
Twisted Pair:

86
