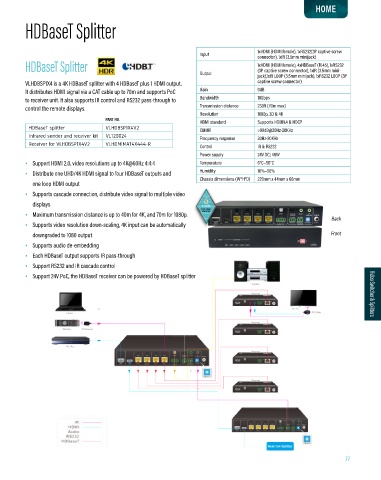

HDBaseT Splitter

Input 1xHDMI (HDMI female), 1xRS232(3P captive screw
connector), 1xIR (3.5mm minijack)
HDBaseT Splitter 1xHDMI (HDMI female), 4xHDBaseT (RJ45), 1xRS232
Output (3P captive screw connector), 1xIR (3.5mm mini-
jack),1xIR LOOP (3.5mm minijack), 1xRS232 LOOP (3P
VLHDBSP1X4 is a 4K HDBaseT splitter with 4 HDBaseT plus 1 HDMI output. captive screw connector)
It distributes HDMI signal via a CAT cable up to 70m and supports PoC Gain 0dB
to receiver unit. It also supports IR control and RS232 pass-through to Bandwidth 18Gbps
control the remote displays. Transmission distance 230ft (70m max)
Resolution 1080p, 3D & 4K
PART NO. HDMI standard Supports HDMI1.4 & HDCP
HDBaseT splitter VLHDBSP1X4V2 CMMR >90dB@20Hz-20KHz
Infrared sender and receiver kit VL120024 Frequency response 20Hz-20KHz
Receiver for VLHDBSP1X4V2 VLHDMIMAT4X444-R Control IR & RS232
Power supply 24V DC; 48W
• Support HDMI 2.0, video resolutions up to 4K@60Hz 4:4:4 Temperature 0°C~50°C
• Distribute one UHD/4K HDMI signal to four HDBaseT outputs and Humidity 10%~90%
Chassis dimensions (W*H*D) 220mm x 44mm x 66mm
one loop HDMI output
• Supports cascade connection, distribute video signal to multiple video
Vivolink keeps your system running
displays If you face any problems with your Vivolink product, we
Free Swap immediately send you a new one. No need to wait for a
faulty product to be repaired.
Warranty
• Maximum transmission distance is up to 40m for 4K, and 70m for 1080p. This is part of our Premium Professional Service.
Back
• Supports video resolution down-scaling, 4K input can be automatically
downgraded to 1080 output Front
• Supports audio de-embedding
• Each HDBaseT output supports IR pass-through
• Support RS232 and IR cascade control
• Support 24V PoC, the HDBaseT receiver can be powered by HDBaseT splitter Video Switcher & Splitters
