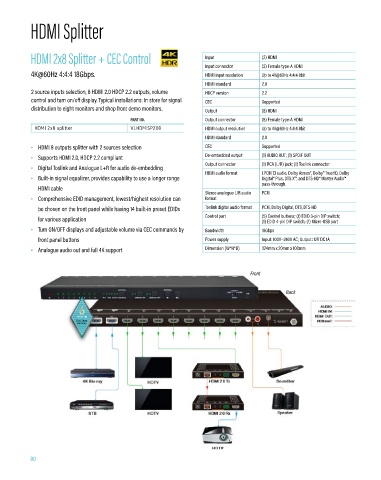

HDMI Splitter

HDMI 2x8 Splitter + CEC Control Input (2) HDMI
Input connector (2) Female type-A HDMI
4K@60Hz 4:4:4 18Gbps. HDMI input resolution Up to 4K@60Hz 4:4:4 8bit

HDMI standard 2.0
2 source inputs selection, 8 HDMI 2.0 HDCP 2.2 outputs, volume HDCP version 2.2
control and turn on/off display. Typical installations: In store for signal CEC Supported
distribution to eight monitors and shop front demo monitors. Output (8) HDMI

PART NO. Output connector (8) Female type-A HDMI
HDMI 2x8 splitter VLHDMISP2X8 HDMI output resolution Up to 4K@60Hz 4:4:4 8bit
HDMI standard 2.0
• HDMI 8 outputs splitter with 2 sources selection CEC Supported
• Supports HDMI 2.0, HDCP 2.2 compliant De-embedded output (1) AUDIO OUT; (1) SPDIF OUT
• Digital Toslink and Analogue L+R for audio de-embedding Output connector (1) RCA (L/R) jack; (1) Toslink connector
HDMI audio format LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby
• Built-in signal equalizer, provides capability to use a longer range Digital® Plus, DTS:X™, and DTS-HD® Master Audio™
pass-through.
HDMI cable
Stereo analogue L/R audio PCM
• Comprehensive EDID management, lowest/highest resolution can format
be chosen on the front panel while having 14 built-in preset EDIDs Toslink digital audio format PCM, Dolby Digital, DTS, DTS-HD
for various application Control part (5) Control buttons; (1) EDID 3-pin DIP switch;
(1) EDID 4-pin DIP switch; (1) Micro-USB port
• Turn ON/OFF displays and adjustable volume via CEC commands by Bandwidth 18Gbps
front panel buttons Power supply Input: 100V~240V AC; Output: 12V DC 1A
• Analogue audio out and full 4K support Dimension (W*H*D) 324mm x 20mm x 100mm

Front

Back
