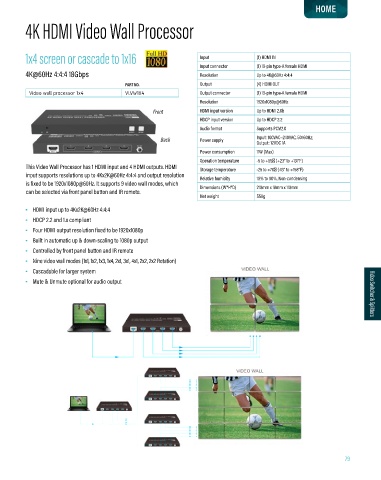

4K HDMI Video Wall Processor

1x4 screen or cascade to 1x16 Input (1) HDMI IN
Input connector (1) 19-pin type-A female HDMI
4K@60Hz 4:4:4 18Gbps Resolution Up to 4K@60Hz 4:4:4

PART NO. Output (4) HDMI OUT
Video wall processor 1x4 VLVW1X4 Output connector (1) 19-pin type-A female HDMI
Resolution 1920x1080p@60Hz
Front HDMI input version Up to HDMI 2.0b
HDCP input version Up to HDCP 2.2
Audio format Supports PCM2.0
Back Power supply Input: 100VAC~240VAC, 50/60Hz;
Output: 12VDC 1A
Power consumption 11W (Max)
Operation temperature -5 to +55℃ (+23° to +131°F)
This Video Wall Processor has 1 HDMI input and 4 HDMI outputs. HDMI Storage temperature -25 to +70℃ (-13° to +158°F)
input supports resolutions up to 4Kx2K@60Hz 4:4:4 and output resolution Relative humidity 10% to 90%, Non-condensing
is fixed to be 1920x1080p@60Hz. It supports 9 video wall modes, which Dimensions (W*H*D) 210mm x 18mm x 110mm
can be selected via front panel button and IR remote.
Net weight 550g
• HDMI input up to 4Kx2K@60Hz 4:4:4
• HDCP 2.2 and 1.x compliant
• Four HDMI output resolution fixed to be 1920x1080p
• Built in automatic up & down-scaling to 1080p output
• Controlled by front panel button and IR remote
• Nine video wall modes (1x1, 1x2, 1x3, 1x4, 2x1, 3x1, 4x1, 2x2, 2x2 Rotation)
• Cascadable for larger system
• Mute & Unmute optional for audio output Video Switcher & Splitters
