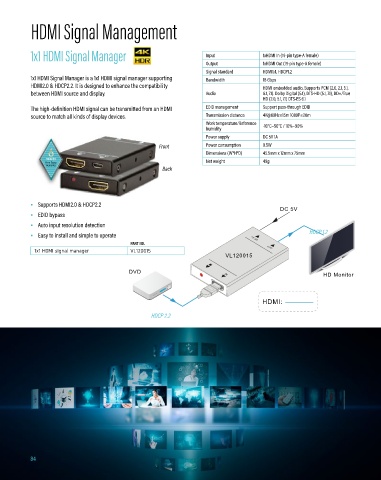

HDMI Signal Management

1x1 HDMI Signal Manager Input 1xHDMI In (19-pin type-A female)

Output 1xHDMI Out (19-pin type-A female)
Signal standard HDMI1.4, HDCP1.2
1x1 HDMI Signal Manager is a 1x1 HDMI signal manager supporting Bandwidth 18 Gbps
HDMI2.0 & HDCP2.2. It is designed to enhance the compatibility HDMI embedded audio. Supports PCM (2.0, 2.1, 5.1,
between HDMI source and display. Audio 6.1, 7.1). Dolby Digital (5.1), DTS-HD (5.1, 7.1), DD+/True
HD (2.0, 5.1, 7.1) DTS-ES 6.1
The high-definition HDMI signal can be transmitted from an HDMI EDID management Support pass-through EDID
source to match all kinds of display devices. Transmission distance 4K@60Hz≤15m 1080P≤20m
Work temperature/Reference -10°C~50°C / 10%~90%
humidity
Power supply DC 5V 1A
Front Power consumption 0.5W
Vivolink keeps your system running
Dimensions (W*H*D) 45.5mm x 12mm x 75mm
If you face any problems with your Vivolink product, we
immediately send you a new one. No need to wait for a Net weight 49g
Free Swap faulty product to be repaired.
Warranty
This is part of our Premium Professional Service. Back

• Supports HDMI2.0 & HDCP2.2
DC 5V
• EDID bypass
• Auto input resolution detection
• Easy to install and simple to operate HDCP 1.2
PART NO.
1x1 HDMI signal manager VL120015
VL120015

DVD HD Monitor

HDMI:

HDCP 2.2
