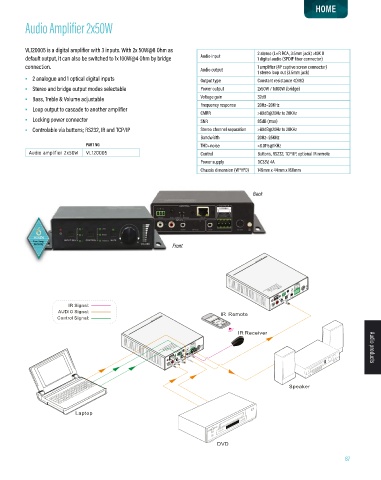

Page 89 - Vivolink_Catalogue_2024

HOME

Audio Amplifier 2x50W

VL120005 is a digital amplifier with 3 inputs. With 2x 50W@8 Ohm as 2 stereo (L+R RCA, 3.5mm jack) >10K Ω
default output, it can also be switched to 1x 100W@4 Ohm by bridge Audio input 1 digital audio (SPDIF fiber connector)
connection. Audio output 1 amplifier (4P captive screw connector)
1 stereo loop out (3.5mm jack)
• 2 analogue and 1 optical digital inputs Output type Constant resistance 4Ω/8Ω
• Stereo and bridge output modes selectable Power output 2x50W / 1x100W (bridge)
• Bass, Treble & Volume adjustable Voltage gain 32dB
Frequency response 20Hz~20KHz
• Loop output to cascade to another amplifier
CMRR >80dB@20Hz to 20KHz
• Locking power connector SNR 85dB (max)
• Controlable via buttons; RS232, IR and TCP/IP Stereo channel separation >80dB@20Hz to 20KHz
Bandwidth 20Hz~25KHz
PART NO. THD+noise <0.01%@1KHz
Audio amplifier 2x50W VL120005 Control Buttons, RS232, TCP/IP, optional IR remote
Power supply DC33V, 4A
Chassis dimension (W*H*D) 148mm x 44mm x 160mm

Back

Vivolink keeps your system running
If you face any problems with your Vivolink product, we
immediately send you a new one. No need to wait for a
Free Swap faulty product to be repaired.
Warranty Front
This is part of our Premium Professional Service.

IR Signal:
AUDIO Signal: IR Remote
Control Signal:

IR Receiver Audio products

Speaker

Laptop

DVD

87
