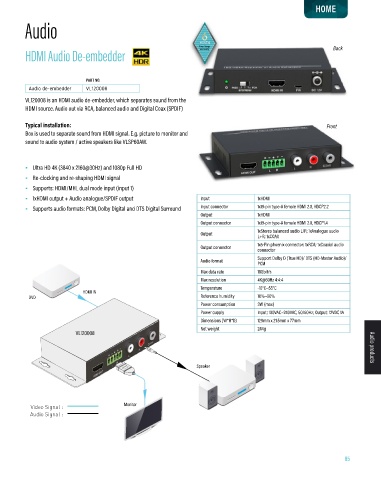

Page 87 - Vivolink_Catalogue_2024

HOME

Audio Vivolink keeps your system running

If you face any problems with your Vivolink product, we
immediately send you a new one. No need to wait for a
Free Swap faulty product to be repaired. Back
HDMI Audio De-embedder This is part of our Premium Professional Service.
Warranty

PART NO.
Audio de-embedder VL120008
VL120008 is an HDMI audio de-embedder, which separates sound from the
HDMI source. Audio out via RCA, balanced audio and Digital Coax (SPDIF)

Typical installation: Front
Box is used to separate sound from HDMI signal. E.g. picture to monitor and
sound to audio system / active speakers like VLSP60AW.

• Ultra HD 4K (3840 x 2160@30Hz) and 1080p Full HD
• Re-clocking and re-shaping HDMI signal
• Supports: HDMI/MHL dual mode input (input 1)
• 1xHDMI output + Audio analogue/SPDIF output Input 1xHDMI
• Supports audio formats: PCM, Dolby Digital and DTS Digital Surround Input connector 1x19-pin type-A female HDMI 2.0, HDCP2.2
Output 1xHDMI
Output connector 1x19-pin type-A female HDMI 2.0, HDCP1.4
Output 1xStereo balanced audio L/R; 1xAnalogue audio
L+R; 1xCOAX
Output connector 1x5-Pin phoenix connector; 1xRCA; 1xCoaxial audio
connector
Audio format Support Dolby D (True HD)/ DTS (HD-Master Audio)/
PCM
Max data rate 18Gbit/s
Max resolution 4K@60Hz 4:4:4
Temperature -10°C~55°C
HDMI IN
DVD Reference humidity 10%~90%
Power consumption 3W (max)
Power cupply Input: 100VAC~240VAC, 50/60Hz; Output: 12VDC 1A
Dimensions (W*H*D) 129mm x 21.5mm x 77mm
Net weight 244g
VL120008 Audio products

Speaker

Video Signal : Monitor
Audio Signal :

85
