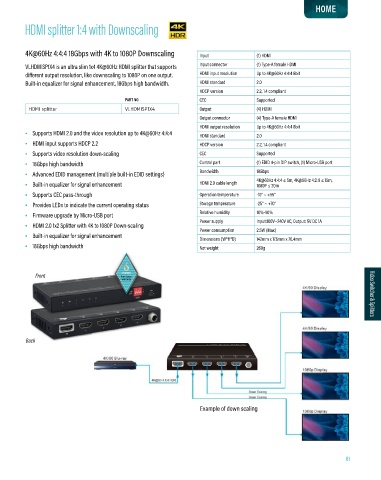

HDMI splitter 1:4 with Downscaling

4K@60Hz 4:4:4 18Gbps with 4K to 1080P Downscaling Input (1) HDMI

VLHDMISP1X4 is an ultra slim 1x4 4K@60Hz HDMI splitter that supports Input connector (1) Type-A female HDMI
different output resolution, like downscaling to 1080P on one output. HDMI input resolution Up to 4K@60Hz 4:4:4 8bit
Built-in equalizer for signal enhancement, 18Gbps high bandwidth. HDMI standard 2.0
HDCP version 2.2, 1.4 compliant
PART NO. CEC Supported
HDMI splitter VLHDMISP1X4 Output (4) HDMI
Output connector (4) Type-A female HDMI
HDMI output resolution Up to 4K@60Hz 4:4:4 8bit
• Supports HDMI 2.0 and the video resolution up to 4K@60Hz 4:4:4 HDMI standard 2.0
• HDMI input supports HDCP 2.2 HDCP version 2.2, 1.4 compliant
• Supports video resolution down-scaling CEC Supported
• 18Gbps high bandwidth Control part (1) EDID 4-pin DIP switch, (1) Micro-USB port
• Advanced EDID management (multiple built-in EDID settings) Bandwidth 18Gbps
• Built-in equalizer for signal enhancement HDMI 2.0 cable length 4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m,
1080P ≤ 20m
• Supports CEC pass-through Operation temperature -10° ~ +55°
• Provides LEDs to indicate the current operating status Storage temperature -25° ~ +70°
• Firmware upgrade by Micro-USB port Relative humidity 10%-90%
Power supply Input:100V~240V AC, Output: 5V DC 1A
• HDMI 2.0 1x2 Splitter with 4K to 1080P Down-scaling
Power consumption 2.5W (Max)
• Built-in equalizer for signal enhancement Dimensions (W*H*D) 142mm x 17.6mm x 70.4mm
• 18Gbps high bandwidth Net weight 260g

Vivolink keeps your system running
If you face any problems with your Vivolink product, we
Front Free Swap immediately send you a new one. No need to wait for a
faulty product to be repaired.
Warranty
This is part of our Premium Professional Service. Video Switcher & Splitters

Back

Example of down scaling
