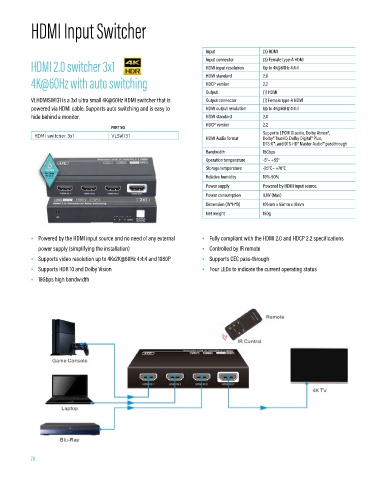

HDMI Input Switcher

Input (3) HDMI
HDMI 2.0 switcher 3x1 Input connector (3) Female type-A HDMI
HDMI input resolution
Up to 4K@60Hz 4:4:4
4K@60Hz with auto switching HDMI standard 2.0
2.2
HDCP version
Output (1) HDMI
VLHDMISW131 is a 3x1 ultra small 4K@60Hz HDMI switcher that is Output connector (1) Female type-A HDMI
powered via HDMI cable. Supports auto switching and is easy to HDMI output resolution Up to 4K@60Hz 4:4:4
hide behind a monitor. HDMI standard 2.0
HDCP version 2.2
PART NO.
Supports LPCM 7.1 audio, Dolby Atmos®,
HDMI switcher 3x1 VLSW131 HDMI Audio format Dolby® TrueHD, Dolby Digital® Plus,
DTS:X™, and DTS-HD® Master Audio™ passthrough
Bandwidth 18Gbps
Operation temperature -5°~ +55°
Vivolink keeps your system running
If you face any problems with your Vivolink product, we Storage temperature -25°C~ +70°C
immediately send you a new one. No need to wait for a
Free Swap faulty product to be repaired.
Warranty Relative humidity 10%-90%
This is part of our Premium Professional Service.
Power supply Powered by HDMI input source.
Power consumption 0,1W (Max)
Dimension (W*H*D) 105mm x 55mm x 18mm
Net weight 150g

• Powered by the HDMI input source and no need of any external • Fully compliant with the HDMI 2.0 and HDCP 2.2 specifications
power supply (simplifying the installation) • Controlled by IR remote
• Supports video resolution up to 4Kx2K@60Hz 4:4:4 and 1080P • Supports CEC pass-through
• Supports HDR 10 and Dolby Vision • Four LEDs to indicate the current operating status
• 18Gbps high bandwidth
