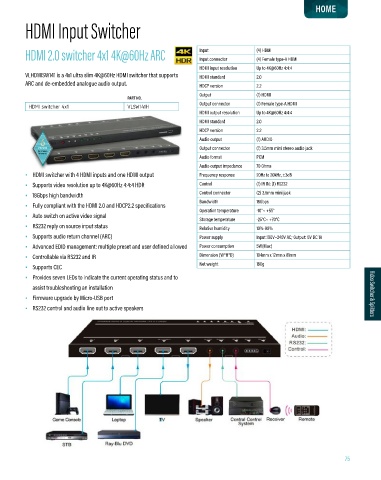

HDMI Input Switcher

HDMI 2.0 switcher 4x1 4K@60Hz ARC Input (4) HDMI
(4) Female type-A HDMI
Input connector
HDMI input resolution Up to 4K@60Hz 4:4:4
VLHDMISW141 is a 4x1 ultra slim 4K@60Hz HDMI switcher that supports HDMI standard 2.0
ARC and de-embedded analogue audio output. HDCP version 2.2
Output (1) HDMI
PART NO.
Output connector (1) Female type-A HDMI
HDMI switcher 4x1 VLSW141H
HDMI output resolution Up to 4K@60Hz 4:4:4
HDMI standard 2.0
HDCP version 2.2
Audio output (1) AUDIO
Vivolink keeps your system running
If you face any problems with your Vivolink product, we
immediately send you a new one. No need to wait for a Output connector (1) 3.5mm mini stereo audio jack
Free Swap faulty product to be repaired.
Warranty
This is part of our Premium Professional Service. Audio format PCM
Audio output impedance 70 Ohms
• HDMI switcher with 4 HDMI inputs and one HDMI output Frequency response 20Hz to 20kHz, ±3dB
• Supports video resolution up to 4K@60Hz 4:4:4 HDR Control (1) IR IN; (1) RS232
• 18Gbps high bandwidth Control connector (2) 3.5mm mini jack
Bandwidth 18Gbps
• Fully compliant with the HDMI 2.0 and HDCP2.2 specifications
Operation temperature -10°~ +55°
• Auto switch on active video signal
Storage temperature -25°C~ +70°C
• RS232 reply on source input status Relative humidity 10%-90%
• Supports audio return channel (ARC) Power supply Input:100V~240V AC; Output: 5V DC 1A
• Advanced EDID management: multiple preset and user defined allowed Power consumption 5W(Max)
• Controllable via RS232 and IR Dimension (W*H*D) 194mm x 12mm x 81mm
• Supports CEC Net weight 180g
• Provides seven LEDs to indicate the current operating status and to
assist troubleshooting an installation
• Firmware upgrade by Micro-USB port Video Switcher & Splitters
• RS232 control and audio line out to active speakers
