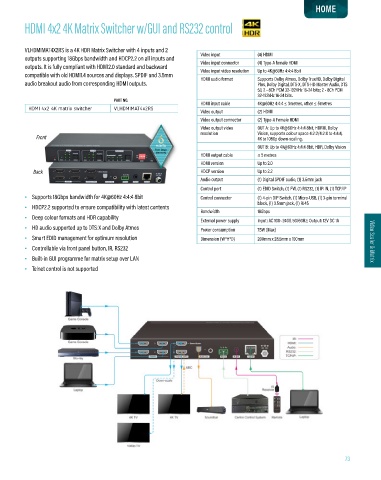

HDMI 4x2 4K Matrix Switcher w/GUI and RS232 control

VLHDMIMAT4X2RS is a 4K HDR Matrix Switcher with 4 inputs and 2
outputs supporting 18Gbps bandwidth and HDCP2.2 on all inputs and Video input (4) HDMI
outputs. It is fully compliant with HDMI2.0 standard and backward Video input connector (4) Type-A female HDMI
Up to 4K@60Hz 4:4:4 8bit
Video input video resolution
compatible with old HDMI1.4 sources and displays. SPDIF and 3.5mm HDMI audio format Supports Dolby Atmos, Dolby TrueHD, Dolby Digital
audio breakout audio from corresponding HDMI outputs. Plus, Dolby Digital, DTS-X, DTS-HD Master Audio, DTS
5.1, 2 - 8Ch PCM 32-192KHz 16-24 bits; 2 - 8Ch PCM
32-192kHz 16-24 bits.
PART NO. HDMI input cable 4K@60Hz 4:4:4 ≤ 3metres, other ≤ 5metres
HDMI 4x2 4K matrix switcher VLHDMIMAT4x2RS
Video output (2) HDMI
Video output connector (2) Type-A Female HDMI
Video output video OUT A: Up to 4K@60Hz 4:4:4 8bit, HDR10, Dolby
resolution Vision, supports colour space 4:2:2/4:2:0 to 4:4:4,
Front Vivolink keeps your system running 4K to 1080p down-scaling.
If you face any problems with your Vivolink product, we
immediately send you a new one. No need to wait for a OUT B: Up to 4K@60Hz 4:4:4 8bit, HDR, Dolby Vision
Free Swap faulty product to be repaired.
Warranty HDMI output cable ≤ 5 metres
This is part of our Premium Professional Service.
HDMI version Up to 2.0
Back HDCP version Up to 2.2
Audio output (1) Digital SPDIF audio, (1) 3.5mm jack
Control port (1) EDID Switch, (1) FW, (1) RS232, (1) IR IN, (1) TCP/IP
• Supports 18Gbps bandwidth for 4K@60Hz 4:4:4 8bit Control connector (1) 4-pin DIP Switch, (1) Micro-USB, (1) 3-pin terminal
• HDCP2.2 supported to ensure compatibility with latest contents block, (1) 3.5mm jack, (1) RJ45
Bandwidth 18Gbps
• Deep colour formats and HDR capability
External power supply Input: AC 100~240V, 50/60Hz; Output: 12V DC 1A
• HD audio supported up to DTS:X and Dolby Atmos Power consumption 7.5W (Max)
• Smart EDID management for optimum resolution Dimension (W*H*D) 200mm x 28.5mm x 100mm Video Scaler & Matrix
• Controllable via front panel button, IR, RS232
• Built-in GUI programme for matrix setup over LAN
• Telnet control is not supported
