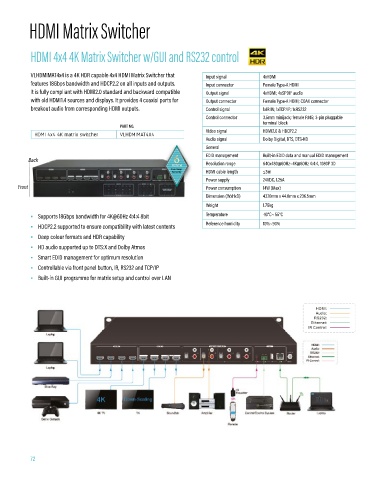

HDMI Matrix Switcher

HDMI 4x4 4K Matrix Switcher w/GUI and RS232 control

VLHDMIMAT4x4 is a 4K HDR capable 4x4 HDMI Matrix Switcher that Input signal 4xHDMI
features 18Gbps bandwidth and HDCP2.2 on all inputs and outputs. Input connector Female Type-A HDMI
It is fully compliant with HDMI2.0 standard and backward compatible Output signal 4xHDMI; 4xSPDIF audio
with old HDMI1.4 sources and displays. It provides 4 coaxial ports for Output connector Female Type-A HDMI; COAX connector
breakout audio from corresponding HDMI outputs. Control signal 1xIR IN; 1xTCP/IP; 1xRS232
Control connector 3.5mm minijack; female RJ45; 3-pin pluggable
terminal block
PART NO.
Video signal HDMI2.0 & HDCP2.2
HDMI 4x4 4K matrix switcher VLHDMIMAT4X4
Audio signal Dolby Digital, DTS, DTS-HD
General
EDID management
Vivolink keeps your system running Built-in EDID data and manual EDID management
Back
Resolution range
If you face any problems with your Vivolink product, we 640x480@60Hz~4K@60Hz 4:4:4, 1080P 3D
immediately send you a new one. No need to wait for a
Free Swap faulty product to be repaired.
Warranty HDMI cable length ≤5m
This is part of our Premium Professional Service.
Power supply 24VDC, 1.25A
Front Power consumption 14W (Max)
Dimension (WxHxD) 437.0mm x 44.0mm x 236.5mm
Weight 1.75kg
• Supports 18Gbps bandwidth for 4K@60Hz 4:4:4 8bit Temperature -10°C~ 55°C
• HDCP2.2 supported to ensure compatibility with latest contents Reference humidity 10%~90%
• Deep colour formats and HDR capability
• HD audio supported up to DTS:X and Dolby Atmos
• Smart EDID management for optimum resolution
• Controllable via front panel button, IR, RS232 and TCP/IP
• Built-in GUI programme for matrix setup and control over LAN

1 2 3 4
