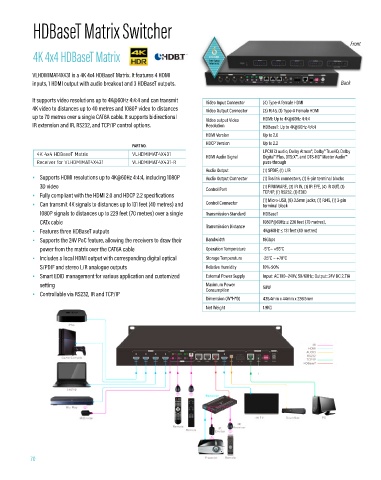

Page 72 - Vivolink_Catalogue_2024

HDBaseT Matrix Switcher

Front
Vivolink keeps your system running
4K 4x4 HDBaseT Matrix If you face any problems with your Vivolink product, we
immediately send you a new one. No need to wait for a
Free Swap
Warranty faulty product to be repaired.
This is part of our Premium Professional Service.
VLHDMIMAT4X431 is a 4K 4x4 HDBaseT Matrix. It features 4 HDMI
inputs, 1 HDMI output with audio breakout and 3 HDBaseT outputs. Back

It supports video resolutions up to 4K@60Hz 4:4:4 and can transmit Video Input Connector (4) Type-A female HDMI
4K video to distances up to 40 metres and 1080P video to distances Video Output Connector (3) RJ45, (1) Type-A Female HDMI
up to 70 metres over a single CAT6A cable. It supports bidirectional Video output Video HDMI: Up to 4K@60Hz 4:4:4
IR extension and IR, RS232, and TCP/IP control options. Resolution HDBaseT: Up to 4K@60Hz 4:4:4
HDMI Version Up to 2.0
HDCP Version Up to 2.2
PART NO.
LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby
4K 4x4 HDBaseT Matrix VLHDMIMAT4X431 HDMI Audio Signal Digital® Plus, DTS:X™, and DTS-HD® Master Audio™
Receiver for VLHDMIMAT4X431 VLHDMIMAT4X431-R pass-through
Audio Output (1) SPDIF, (1) L/R
• Supports HDMI resolutions up to 4K@60Hz 4:4:4, including 1080P Audio Output Connector (1) Toslink connectors, (1) 5-pin terminal blocks
3D video Control Port (1) FIRMWARE, (3) IR IN, (1) IR EYE, (4) IR OUT, (1)
• Fully compliant with the HDMI 2.0 and HDCP 2.2 specifications TCP/IP, (1) RS232, (1) EDID
• Can transmit 4K signals to distances up to 131 feet (40 metres) and Control Connector (1) Micro-USB, (8) 3.5mm jacks, (1) RJ45, (1) 3-pin
terminal block
1080P signals to distances up to 229 feet (70 metres) over a single Transmission Standard HDBaseT
CATx cable 1080P@60Hz ≤ 230 feet (70 metres),
• Features three HDBaseT outputs Transmission Distance 4K@60Hz ≤ 131 feet (40 metres)
• Supports the 24V PoC feature, allowing the receivers to draw their Bandwidth 18Gbps
power from the matrix over the CAT6A cable Operation Temperature -5°C~ +55°C
• Includes a local HDMI output with corresponding digital optical Storage Temperature -25°C ~ +70°C
S/PDIF and stereo L/R analogue outputs Relative Humidity 10%-90%
• Smart EDID management for various application and customized External Power Supply Input: AC 100~240V, 50/60Hz; Output: 24V DC 2.71A
setting Maximum Power 58W
• Controllable via RS232, IR and TCP/IP Consumption
Dimension (W*H*D) 436.4mm x 44mm x 236.5mm
Net Weight 1.9KG
