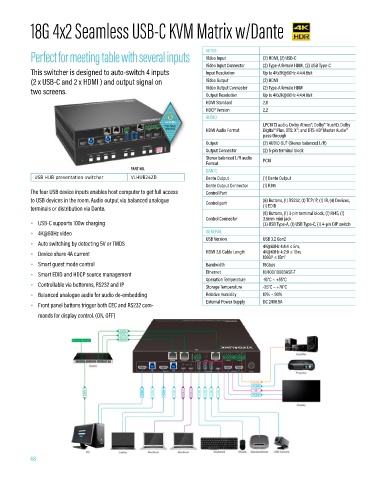

18G 4x2 Seamless USB-C KVM Matrix w/Dante

Perfect for meeting table with several inputs VIDEO (2) HDMI, (2) USB-C
Video Input
Video Input Connector (2) Type-A female HDMI, (2) USB Type-C
This switcher is designed to auto-switch 4 inputs Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit
(2 x USB-C and 2 x HDMI ) and output signal on Video Output (2) HDMI
two screens. Video Output Connector (2) Type-A female HDMI
Output Resolution
Up to 4Kx2K@60Hz 4:4:4 8bit
HDMI Standard 2,0
HDCP Version 2,2
Vivolink keeps your system running
AUDIO
If you face any problems with your Vivolink product, we
immediately send you a new one. No need to wait for a LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby
Free Swap faulty product to be repaired.
Warranty HDMI Audio Format Digital® Plus, DTS: X™, and DTS-HD® Master Audio™
This is part of our Premium Professional Service.
pass-through
Output (2) AUDIO OUT (Stereo balanced L/R)
Output Connector (2) 5-pin terminal block
Stereo balanced L/R audio PCM
Format
PART NO. DANTE
USB HUB presentation switcher VLHUB242D Dante Output (1) Dante Output
Dante Output Connector (1) RJ45
The four USB device inputs enables host computer to get full access Control Part
to USB devices in the room. Audio output via balanced analogue Control port (8) Buttons, (1) RS232, (1) TCP/IP, (1) IR, (4) Devices,
terminals or distribution via Dante. (1) EDID
(8) Buttons, (1) 3-pin terminal block, (1) RJ45, (1)
Control Connector 3.5mm mini jack
• USB-C supports 100w charging (3) USB Type-A, (1) USB Type-C, (1) 4-pin DIP switch
• 4K@60Hz video GENERAL
USB Version USB 3.2 Gen2
• Auto switching by detecting 5V or TMDS 4K@60Hz 4:4:4 ≤ 5m,
• Device share 4A current HDMI 2.0 Cable Length 4K@60Hz 4:2:0 ≤ 10m,
1080P ≤ 15m"
• Smart guest mode control Bandwidth 18Gbps
• Smart EDID and HDCP source management Ethernet 10/100/1000BASE-T
Operation Temperature -10°C ~ +55°C
• Controllable via bottomns, RS232 and IP Storage Temperature -25°C ~ +70°C
• Balanced analogue audio for audio de-embedding Relative Humidity 10% ~ 90%
• Front panel buttons trigger both CEC and RS232 com- External Power Supply DC 24V6.5A
mands for display control. (ON, OFF)
