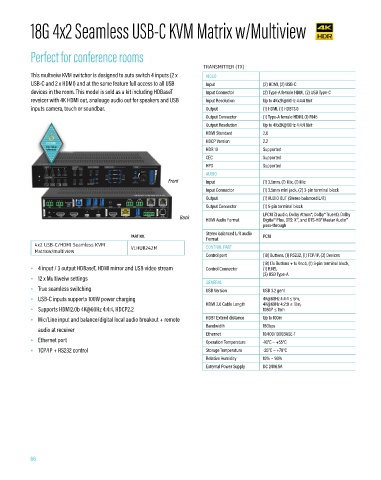

18G 4x2 Seamless USB-C KVM Matrix w/Multiview

Perfect for conference rooms

TRANSMITTER (TX)
This multveiw KVM switcher is designed to auto switch 4 inputs (2 x VIDEO
USB-C and 2 x HDMI) and at the same feature full access to all USB Input (2) HDMI, (2) USB-C
devices in the room. This model is sold as a kit including HDBaseT Input Connector (2) Type-A female HDMI, (2) USB Type-C
reveicer with 4K HDMI out, analouge audio out for speakers and USB Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit
inputs camera, touch or soundbar. Output (1) HDMI, (1) HDBT3.0
Output Connector (1) Type-A female HDMI, (1) RJ45
Output Resolution Up to 4Kx2K@60Hz 4:4:4 8bit
Vivolink keeps your system running HDMI Standard 2.0
If you face any problems with your Vivolink product, we HDCP Version 2.2
immediately send you a new one. No need to wait for a
Free Swap faulty product to be repaired.
Warranty HDR 10 Supported
This is part of our Premium Professional Service.
CEC Supported
HPD Supported
AUDIO
Front Input (1) 3.5mm, (1) Mix, (1) Mic
Input Connector (1) 3.5mm mini jack, (2) 3-pin terminal block
Output (1) AUDIO OUT (Stereo balanced L/R)
Output Connector (1) 5-pin terminal block
Back HDMI Audio Format LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby
Digital® Plus, DTS: X™, and DTS-HD® Master Audio™
pass-through
Stereo balanced L/R audio
PART NO. Format PCM
4x2 USB-C/HDMI Seamless KVM VLHUB242M CONTROL PART
Matrixw/multiview
Control port (18) Buttons, (1) RS232, (1) TCP/IP, (3) Devices
(18) 17x Buttons + 1x Knob, (1) 3-pin terminal block,
• 4 input / 3 output HDBaseT, HDMI mirror and USB video stream Control Connector (1) RJ45,
(3) USB Type-A
• 12 x Multiweiw settings
GENERAL
• True seamless switching USB Version USB 3.2 gen1
• USB-C inputs supports 100W power charging 4K@60Hz 4:4:4 ≤ 5m,
HDMI 2.0 Cable Length 4K@60Hz 4:2:0 ≤ 10m,
• Supports HDMI2.0b 4K@60Hz 4:4:4, HDCP2.2 1080P ≤ 15m
• Mic/Line input and balance/digital local audio breakout + remote HDBT Extend distance Up to 100m
Bandwidth 18Gbps
audio at receiver
Ethernet 10/100/1000BASE-T
• Ethernet port Operation Temperature -10°C ~ +55°C
• TCP/IP + RS232 control Storage Temperature -25°C ~ +70°C
Relative Humidity 10% ~ 90%
External Power Supply DC 24V6.5A
