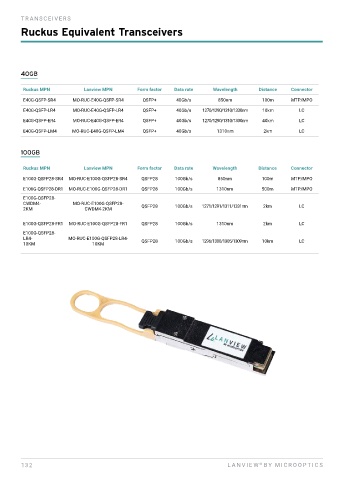

Page 132 - Lanview_Product_Catalogue_2024

TR A NSCEIV ERS

Ruckus Equivalent Transceivers

40GB

Ruckus MPN Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component TX power RX sens Optical power Temp. range DDMI
E40G-QSFP-SR4 MO-RUC-E40G-QSFP-SR4 QSFP+ 40Gb/s 850nm 100m MTP/MPO MM C VCSEL/PIN -7.6~2.4dBm -9.5dBm 1.9dB 0°C ~ 70°C DDMI

E40G-QSFP-LR4 MO-RUC-E40G-QSFP-LR4 QSFP+ 40Gb/s 1270/1290/1310/1330nm 10km LC SM C DFB/PIN -7~2.3dBm -11.5dBm 4.5dB 0°C ~ 70°C DDMI
E40G-QSFP-ER4 MO-RUC-E40G-QSFP-ER4 QSFP+ 40Gb/s 1270/1290/1310/1330nm 40km LC SM C DFB/APD -2.7~4.5dBm -21.2dBm 18.5dB 0°C ~ 70°C DDMI
E40G-QSFP-LM4 MO-RUC-E40G-QSFP-LM4 QSFP+ 40Gb/s 1310nm 2km LC SM C DFB/PIN -7~2.3dBm -13.2dBm 7dB 0°C ~ 70°C DDMI

100GB

Ruckus MPN Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component TX power RX sens Optical power Temp. range DDMI
E100G-QSFP28-SR4 MO-RUC-E100G-QSFP28-SR4 QSFP28 100Gb/s 850nm 100m MTP/MPO MM C VCSEL/PIN -8.4~2.5dBm -5.2dBm 3.2dB 0°C ~ 70°C DDMI

E100G-QSFP28-DR1 MO-RUC-E100G-QSFP28-DR1 QSFP28 100Gb/s 1310nm 500m MTP/MPO SM C VCSEL/PIN -5.4~1.5dBm -4.4dBm 3.9dB 0°C ~ 70°C DDMI
E100G-QSFP28-
CWDM4- MO-RUC-E100G-QSFP28- QSFP28 100Gb/s 1271/1291/1311/1331nm 2km LC SM C DFB/PIN -6.5~2.5dBm -11.5dBm 5dB 0°C ~ 70°C DDMI
2KM CWDM4-2KM

E100G-QSFP28-FR1 MO-RUC-E100G-QSFP28-FR1 QSFP28 100Gb/s 1310nm 2km LC SM C DFB/PIN -5.3~4.2dBm -11dBm 5.4dB 0°C ~ 70°C DDMI
E100G-QSFP28-
LR4- MO-RUC-E100G-QSFP28-LR4- QSFP28 100Gb/s 1296/1300/1305/1309nm 10km LC SM C DFB/PIN -4.3~4.5dBm -10.6dBm 6.3dB 0°C ~ 70°C DDMI
10KM 10KM

®
