TR A NSCEIV ERS

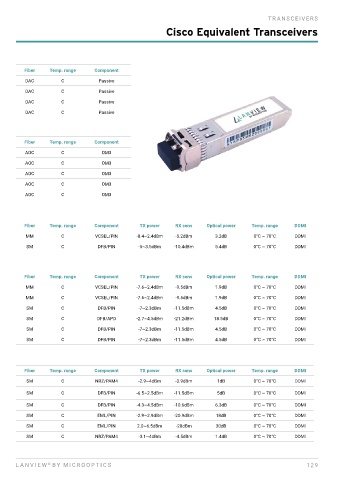

Cisco Equivalent Transceivers
Cisco MPN Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component
SFP-H10GB-CU1M MO-SFP-H10GB-CU1M SFP+ 10Gb/s Twinax Copper 1m SFP+ DAC C Passive
SFP-H10GB-CU2M MO-SFP-H10GB-CU2M SFP+ 10Gb/s Twinax Copper 2m SFP+ DAC C Passive
SFP-H10GB-CU3M MO-SFP-H10GB-CU3M SFP+ 10Gb/s Twinax Copper 3m SFP+ DAC C Passive
SFP-H10GB-CU5M MO-SFP-H10GB-CU5M SFP+ 10Gb/s Twinax Copper 5m SFP+ DAC C Passive
Cisco MPN Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component
SFP-10G-AOC1M MO-C-SFP-10G-AOC1M SFP+ 10Gb/s Multimode Fiber (OM3) 1m SFP+ AOC C OM3
SFP-10G-AOC3M MO-C-SFP-10G-AOC3M SFP+ 10Gb/s Multimode Fiber (OM3) 3m SFP+ AOC C OM3
SFP-10G-AOC5M MO-C-SFP-10G-AOC5M SFP+ 10Gb/s Multimode Fiber (OM3) 5m SFP+ AOC C OM3
SFP-10G-AOC7M MO-C-SFP-10G-AOC7M SFP+ 10Gb/s Multimode Fiber (OM3) 7m SFP+ AOC C OM3
SFP-10G-AOC10M MO-C-SFP-10G-AOC10M SFP+ 10Gb/s Multimode Fiber (OM3) 10m SFP+ AOC C OM3
Cisco MPN Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component TX power RX sens Optical power Temp. range DDMI
SFP-25G-SR-S MO-SFP-25G-SR SFP28 25Gb/s 850nm 100m LC MM C VCSEL/PIN -8.4~2.4dBm -5.2dBm 3.2dB 0°C ~ 70°C DDMI
SFP-10/25G-LR-S MO-SFP-10/25G-LR-S SFP28 25Gb/s 1310nm 10km LC SM C DFB/PIN -5~3.5dBm -10.4dBm 5.4dB 0°C ~ 70°C DDMI
Cisco MPN Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component TX power RX sens Optical power Temp. range DDMI
QSFP-40G-SR4 MO-QSFP-40G-SR4-S QSFP+ 40Gb/s 850nm 100m MTP/MPO MM C VCSEL/PIN -7.6~2.4dBm -9.5dBm 1.9dB 0°C ~ 70°C DDMI
QSFP-40G-CSR4 MO-QSFP-40G-CSR4 QSFP+ 40Gb/s 850nm 300m MTP/MPO MM C VCSEL/PIN -7.6~2.4dBm -9.5dBm 1.9dB 0°C ~ 70°C DDMI
QSFP-40G-SR-BD MO-QSFP-40G-SR-BD QSFP+ 40Gb/s 1270/1290/1310/1330nm 10km LC SM C DFB/PIN -7~2.3dBm -11.5dBm 4.5dB 0°C ~ 70°C DDMI
QSFP-40G-ER4 MO-QSFP-40G-ER4 QSFP+ 40Gb/s 1270/1290/1310/1330nm 40km LC SM C DFB/APD -2.7~4.5dBm -21.2dBm 18.5dB 0°C ~ 70°C DDMI
QSFP-40G-LR MO-QSFP-40G-LR4 QSFP+ 40Gb/s 1270/1290/1310/1330nm 10km LC SM C DFB/PIN -7~2.3dBm -11.5dBm 4.5dB 0°C ~ 70°C DDMI
WSP-Q40GLR4L MO-WSP-Q40GLR4L QSFP+ 40Gb/s 1270/1290/1310/1330nm 2km LC SM C DFB/PIN -7~2.3dBm -11.5dBm 4.5dB 0°C ~ 70°C DDMI
Cisco MPN Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component TX power RX sens Optical power Temp. range DDMI
QSFP-100G-DR-S MO-QSFP-100G-DR-S QSFP28 100Gb/s 1310nm 500m LC SM C NRZ/PAM4 -2.9~4dBm -3.9dBm 1dB 0°C ~ 70°C DDMI
QSFP-100G- MO-QSFP-100G- QSFP28 100Gb/s 1271/1291/1311/1331nm 2km LC SM C DFB/PIN -6.5~2.5dBm -11.5dBm 5dB 0°C ~ 70°C DDMI
CWDM4-S CWDM4-S
QSFP-100G-LR4-S= MO-QSFP-100G-LR4 QSFP28 100Gb/s 1296/1300/1305/1309nm 10km LC SM C DFB/PIN -4.3~4.5dBm -10.6dBm 6.3dB 0°C ~ 70°C DDMI
QSFP-100G-ER4L-S MO-QSFP-100G-ER4L-S. QSFP28 100Gb/s 1296/1300/1305/1309nm 25-40km LC SM C EML/PIN -2.9~2.9dBm -20.9dBm 18dB 0°C ~ 70°C DDMI
QSFP-100G-ZR4-S MO-QSFP-100G-ZR4-S QSFP28 100Gb/s 1296/1300/1305/1309nm 80km LC SM C EML/PIN 2.0~6.5dBm -28dBm 30dB 0°C ~ 70°C DDMI
QSFP-100G-FR-S MO-QSFP-100G-FR-S QSFP28 100Gb/s 1310nm 2km LC SM C NRZ/PAM4 -3.1~4dBm -4.5dBm 1.4dB 0°C ~ 70°C DDMI
