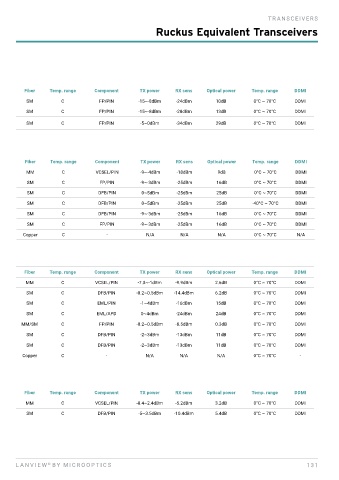

TR A NSCEIV ERS

Ruckus Equivalent Transceivers

Ruckus MPN Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component TX power RX sens Optical power Temp. range DDMI

e1MG-100FX-OM MO-RUC-E1MG-100FX-OM SFP 155Mb/s 1310nm 2km LC SM C FP/PIN -15~-8dBm -24dBm 10dB 0°C ~ 70°C DDMI
E1MG-100FX-IR-OM MO-E1MG-100FX-IR-OM SFP 155Mb/s 1310nm 20km LC SM C FP/PIN -15~-8dBm -28dBm 13dB 0°C ~ 70°C DDMI
E1MG-100FX-LR- MO-RUC-E1MG-100FX-LR-OM SFP 155Mb/s 1310nm 40km LC SM C FP/PIN -5~0dBm -34dBm 29dB 0°C ~ 70°C DDMI
OM

Ruckus MPN Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component TX power RX sens Optical power Temp. range DDMI
E1MG-SX-OM MO-RUC-E1MG-SX-OM SFP 1.25Gb/s 850nm 550m LC MM C VCSEL/PIN -9~-4dBm -18dBm 9dB 0°C ~ 70°C DDMI
E1MG-LX-OM MO-RUC-E1MG-LX-OM SFP 1.25Gb/s 1310nm 20km LC SM C FP/PIN -9~-3dBm -25dBm 16dB 0°C ~ 70°C DDMI

E1MG-LHA-OM MO-RUC-E1MG-LHA-OM SFP 1.25Gb/s 1550nm 80km LC SM C DFB/PIN 0~5dBm -25dBm 25dB 0°C ~ 70°C DDMI
E1MG-LHA-OM-T MO-RUC-E1MG-LHA-OM-T SFP 1.25Gb/s 1550nm 80km LC SM C DFB/PIN 0~5dBm -25dBm 25dB -40°C ~ 70°C DDMI
E1MG-BXD MO-RUC-E1MG-BXD SFP 1.25Gb/s 1490Tx/1310Rx 20km LC SM C DFB/PIN -9~-3dBm -25dBm 16dB 0°C ~ 70°C DDMI
E1MG-BXU MO-RUC-E1MG-BXU SFP 1.25Gb/s 1310Tx/1490Rx 20km LC SM C FP/PIN -9~-3dBm -25dBm 16dB 0°C ~ 70°C DDMI

E1MG-TX MO-RUC-E1MG-TX SFP 1000Mb/s 100m RJ45 Copper C - N/A N/A N/A 0°C ~ 70°C N/A

Ruckus MPN Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component TX power RX sens Optical power Temp. range DDMI
10G-SFPP-SR MO-RUC-10G-SFPP-SR SFP+ 10Gb/s 850nm 300m LC MM C VCSEL/PIN -7.3~-1dBm -9.9dBm 2.6dB 0°C ~ 70°C DDMI

10G-SFPP-LR MO-RUC-10G-SFPP-LR SFP+ 10Gb/s 1310nm 10km LC SM C DFB/PIN -8.2~0.5dBm -14.4dBm 6.2dB 0°C ~ 70°C DDMI
10G-SFPP-ER MO-RUC-10G-SFPP-ER SFP+ 10Gb/s 1550nm 40km LC SM C EML/PIN -1~4dBm -16dBm 15dB 0°C ~ 70°C DDMI
10G-SFPP-ZR MO-RUC-10G-SFPP-ZR SFP+ 10Gb/s 1550nm 80km LC SM C EML/APD 0~4dBm -24dBm 24dB 0°C ~ 70°C DDMI
10G-SFPP-LRM MO-RUC-10G-SFPP-LRM SFP+ 10Gb/s 1310nm 220m LC MM/SM C FP/PIN -8.2~0.5dBm -8.5dBm 0.3dB 0°C ~ 70°C DDMI

10G-SFPP-BXD-S MO-RUC-10G-SFPP-BXD-S SFP+ 10Gb/s 1330Tx/1270Rx 10km LC SM C DFB/PIN -2~3dBm -13dBm 11dB 0°C ~ 70°C DDMI
10G-SFPP-BXU-S MO-RUC-10G-SFPP-BXU-S SFP+ 10Gb/s 1270Tx/1330Rx 10km LC SM C DFB/PIN -2~3dBm -13dBm 11dB 0°C ~ 70°C DDMI
10G-SFPP-TX-A MO-RUC-10G-SFPP-TX-A SFP+ 10Gb/s 30m RJ45 Copper C - N/A N/A N/A 0°C ~ 70°C -

Ruckus MPN Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component TX power RX sens Optical power Temp. range DDMI

E25G-SFP28-SR MO-RUC-E25G-SFP28-SR SFP28 25Gb/s 850nm 100m LC MM C VCSEL/PIN -8.4~2.4dBm -5.2dBm 3.2dB 0°C ~ 70°C DDMI
E25G-SFP28-LR MO-RUC-E25G-SFP28-LR SFP28 25Gb/s 1310nm 10km LC SM C DFB/PIN -5~3.5dBm -10.4dBm 5.4dB 0°C ~ 70°C DDMI
