TR A NSCEIV ERS

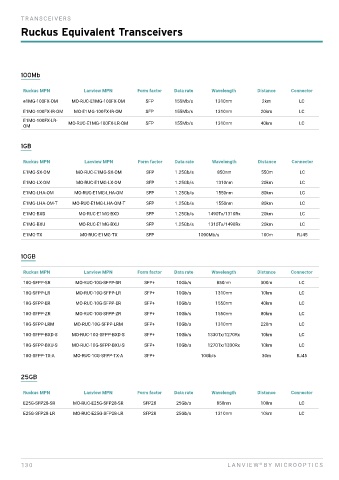

Ruckus Equivalent Transceivers

100Mb

Ruckus MPN Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component TX power RX sens Optical power Temp. range DDMI

e1MG-100FX-OM MO-RUC-E1MG-100FX-OM SFP 155Mb/s 1310nm 2km LC SM C FP/PIN -15~-8dBm -24dBm 10dB 0°C ~ 70°C DDMI
E1MG-100FX-IR-OM MO-E1MG-100FX-IR-OM SFP 155Mb/s 1310nm 20km LC SM C FP/PIN -15~-8dBm -28dBm 13dB 0°C ~ 70°C DDMI
E1MG-100FX-LR- MO-RUC-E1MG-100FX-LR-OM SFP 155Mb/s 1310nm 40km LC SM C FP/PIN -5~0dBm -34dBm 29dB 0°C ~ 70°C DDMI
OM

1GB

Ruckus MPN Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component TX power RX sens Optical power Temp. range DDMI
E1MG-SX-OM MO-RUC-E1MG-SX-OM SFP 1.25Gb/s 850nm 550m LC MM C VCSEL/PIN -9~-4dBm -18dBm 9dB 0°C ~ 70°C DDMI
E1MG-LX-OM MO-RUC-E1MG-LX-OM SFP 1.25Gb/s 1310nm 20km LC SM C FP/PIN -9~-3dBm -25dBm 16dB 0°C ~ 70°C DDMI

E1MG-LHA-OM MO-RUC-E1MG-LHA-OM SFP 1.25Gb/s 1550nm 80km LC SM C DFB/PIN 0~5dBm -25dBm 25dB 0°C ~ 70°C DDMI
E1MG-LHA-OM-T MO-RUC-E1MG-LHA-OM-T SFP 1.25Gb/s 1550nm 80km LC SM C DFB/PIN 0~5dBm -25dBm 25dB -40°C ~ 70°C DDMI
E1MG-BXD MO-RUC-E1MG-BXD SFP 1.25Gb/s 1490Tx/1310Rx 20km LC SM C DFB/PIN -9~-3dBm -25dBm 16dB 0°C ~ 70°C DDMI
E1MG-BXU MO-RUC-E1MG-BXU SFP 1.25Gb/s 1310Tx/1490Rx 20km LC SM C FP/PIN -9~-3dBm -25dBm 16dB 0°C ~ 70°C DDMI

E1MG-TX MO-RUC-E1MG-TX SFP 1000Mb/s 100m RJ45 Copper C - N/A N/A N/A 0°C ~ 70°C N/A

10GB

Ruckus MPN Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component TX power RX sens Optical power Temp. range DDMI
10G-SFPP-SR MO-RUC-10G-SFPP-SR SFP+ 10Gb/s 850nm 300m LC MM C VCSEL/PIN -7.3~-1dBm -9.9dBm 2.6dB 0°C ~ 70°C DDMI

10G-SFPP-LR MO-RUC-10G-SFPP-LR SFP+ 10Gb/s 1310nm 10km LC SM C DFB/PIN -8.2~0.5dBm -14.4dBm 6.2dB 0°C ~ 70°C DDMI
10G-SFPP-ER MO-RUC-10G-SFPP-ER SFP+ 10Gb/s 1550nm 40km LC SM C EML/PIN -1~4dBm -16dBm 15dB 0°C ~ 70°C DDMI
10G-SFPP-ZR MO-RUC-10G-SFPP-ZR SFP+ 10Gb/s 1550nm 80km LC SM C EML/APD 0~4dBm -24dBm 24dB 0°C ~ 70°C DDMI
10G-SFPP-LRM MO-RUC-10G-SFPP-LRM SFP+ 10Gb/s 1310nm 220m LC MM/SM C FP/PIN -8.2~0.5dBm -8.5dBm 0.3dB 0°C ~ 70°C DDMI

10G-SFPP-BXD-S MO-RUC-10G-SFPP-BXD-S SFP+ 10Gb/s 1330Tx/1270Rx 10km LC SM C DFB/PIN -2~3dBm -13dBm 11dB 0°C ~ 70°C DDMI
10G-SFPP-BXU-S MO-RUC-10G-SFPP-BXU-S SFP+ 10Gb/s 1270Tx/1330Rx 10km LC SM C DFB/PIN -2~3dBm -13dBm 11dB 0°C ~ 70°C DDMI
10G-SFPP-TX-A MO-RUC-10G-SFPP-TX-A SFP+ 10Gb/s 30m RJ45 Copper C - N/A N/A N/A 0°C ~ 70°C -

25GB

Ruckus MPN Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component TX power RX sens Optical power Temp. range DDMI

E25G-SFP28-SR MO-RUC-E25G-SFP28-SR SFP28 25Gb/s 850nm 100m LC MM C VCSEL/PIN -8.4~2.4dBm -5.2dBm 3.2dB 0°C ~ 70°C DDMI
E25G-SFP28-LR MO-RUC-E25G-SFP28-LR SFP28 25Gb/s 1310nm 10km LC SM C DFB/PIN -5~3.5dBm -10.4dBm 5.4dB 0°C ~ 70°C DDMI

®
13 0 L A N V I E W B Y M IC R O OP T IC S
