TR A NSCEIV ERS

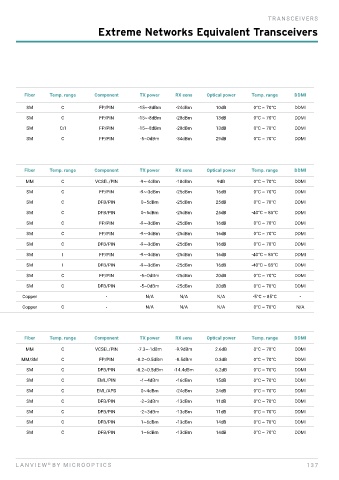

Extreme Networks Equivalent Transceivers

Extreme Networks
MPN Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component TX power RX sens Optical power Temp. range DDMI
10067 MO-10067 SFP 155Mb/s 1310nm 2km LC SM C FP/PIN -15~-8dBm -24dBm 10dB 0°C ~ 70°C DDMI
10066 MO-10066 SFP 155Mb/s 1310nm 10km LC SM C FP/PIN -15~-8dBm -28dBm 13dB 0°C ~ 70°C DDMI
10059 MO-10059 SFP 155Mb/s 1310Tx/1550Rx 0-20km LC SM C/I FP/PIN -15~-8dBm -28dBm 13dB 0°C ~ 70°C DDMI

10058 MO-10058 SFP 155Mb/s 1550nm 80km LC SM C FP/PIN -5~0dBm -34dBm 29dB 0°C ~ 70°C DDMI

Extreme Networks
MPN Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component TX power RX sens Optical power Temp. range DDMI
10051 MO-10051 SFP 1.25Gb/s 850nm 550m LC MM C VCSEL/PIN -9~-4dBm -18dBm 9dB 0°C ~ 70°C DDMI
10051H MO-10051H SFP 1.25Gb/s 1310nm 20km LC SM C FP/PIN -9~-3dBm -25dBm 16dB 0°C ~ 70°C DDMI

10052H MO-10052H SFP 1.25Gb/s 1550nm 40km LC SM C DFB/PIN 0~5dBm -25dBm 25dB 0°C ~ 70°C DDMI
10052 MO-10052 SFP 1.25Gb/s 1550nm 80km LC SM C DFB/PIN 0~5dBm -25dBm 25dB -40°C ~ 85°C DDMI
10053H MO-10053H SFP 1.25Gb/s 1310Tx/1490Rx 20km LC SM C FP/PIN -9~-3dBm -25dBm 16dB 0°C ~ 70°C DDMI
AA1419070-E6 MO-AA1419070-E6 SFP 1.25Gb/s 1310Tx/1490Rx 20km LC SM C FP/PIN -9~-3dBm -25dBm 16dB 0°C ~ 70°C DDMI

AA1419069-E6 MO-AA1419069-E6 SFP 1.25Gb/s 1490Tx/1310Rx 20km LC SM C DFB/PIN -9~-3dBm -25dBm 16dB 0°C ~ 70°C DDMI
10057H MO-10057H SFP 1.25Gb/s 1310Tx/1490Rx 20km LC SM I FP/PIN -9~-3dBm -25dBm 16dB -40°C ~ 85°C DDMI
10056H MO-10056H SFP 1.25Gb/s 1490Tx/1310Rx 20km LC SM I DFB/PIN -9~-3dBm -25dBm 16dB -40°C ~ 85°C DDMI

MGBIC-BX40-U MO-MGBIC-BX40-U SFP 1.25Gb/s 1310Tx/1490Rx 40km LC SM C FP/PIN -5~0dBm -25dBm 20dB 0°C ~ 70°C DDMI
MGBIC-BX40-D MO-MGBIC-BX40-D SFP 1.25Gb/s 1490Tx/1310Rx 40km LC SM C DFB/PIN -5~0dBm -25dBm 20dB 0°C ~ 70°C DDMI
10070H MO-10070H SFP 10/100/1000 (autoneg) 100m RJ45 Copper - N/A N/A N/A -5°C ~ 85°C -

AA1419043-E6 MO-AA1419043-E6 SFP 1000Mb/s 100m RJ45 Copper C - N/A N/A N/A 0°C ~ 70°C N/A

Extreme Networks
MPN Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component TX power RX sens Optical power Temp. range DDMI
10301 MO-10301 SFP+ 10Gb/s 850nm 300m LC MM C VCSEL/PIN -7.3~-1dBm -9.9dBm 2.6dB 0°C ~ 70°C DDMI
10303 MO-10303 SFP+ 10Gb/s 1310nm 220m LC MM/SM C FP/PIN -8.2~0.5dBm -8.5dBm 0.3dB 0°C ~ 70°C DDMI
10302 MO-10302 SFP+ 10Gb/s 1310nm 10km LC SM C DFB/PIN -8.2~0.5dBm -14.4dBm 6.2dB 0°C ~ 70°C DDMI

10309 MO-10309 SFP+ 10Gb/s 1550nm 40km LC SM C EML/PIN -1~4dBm -16dBm 15dB 0°C ~ 70°C DDMI
10310 MO-10310 SFP+ 10Gb/s 1550nm 80km LC SM C EML/APD 0~4dBm -24dBm 24dB 0°C ~ 70°C DDMI
10GB-BX10-U MO-10GB-BX10-U SFP+ 10Gb/s 1270Tx/1330Rx 10km LC SM C DFB/PIN -2~3dBm -13dBm 11dB 0°C ~ 70°C DDMI

10GB-BX10-D MO-10GB-BX10-D SFP+ 10Gb/s 1330Tx/1270Rx 10km LC SM C DFB/PIN -2~3dBm -13dBm 11dB 0°C ~ 70°C DDMI
10GB-BX40-U MO-10GB-BX40-U SFP+ 10Gb/s 1270Tx/1330Rx 40km LC SM C DFB/PIN 1~6dBm -13dBm 14dB 0°C ~ 70°C DDMI
10GB-BX40-D MO-10GB-BX40-D SFP+ 10Gb/s 1330Tx/1270Rx 40km LC SM C DFB/PIN 1~6dBm -13dBm 14dB 0°C ~ 70°C DDMI

L A N V I E W B Y M IC R O OP T IC S 13 7
®
