TR A NSCEIV ERS

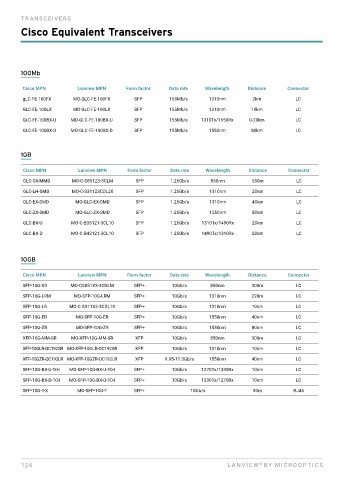

Cisco Equivalent Transceivers

100Mb

Cisco MPN Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component TX power RX sens Optical power Temp. range DDMI
gLC-FE-100FX MO-GLC-FE-100FX SFP 155Mb/s 1310nm 2km LC SM C FP/PIN -15~-8dBm -24dBm 10dB 0°C ~ 70°C DDMI
GLC-FE-100LX MO-GLC-FE-100LX SFP 155Mb/s 1310nm 10km LC SM C FP/PIN -15~-8dBm -28dBm 13dB 0°C ~ 70°C DDMI

GLC-FE-100BX-U MO-GLC-FE-100BX-U SFP 155Mb/s 1310Tx/1550Rx 0-20km LC SM C/I FP/PIN -15~-8dBm -28dBm 13dB 0°C ~ 70°C DDMI
GLC-FE-100BX-D MO-GLC-FE-100BX-D SFP 155Mb/s 1550nm 80km LC SM C FP/PIN -5~0dBm -34dBm 29dB 0°C ~ 70°C DDMI

1GB

Cisco MPN Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component TX power RX sens Optical power Temp. range DDMI
GLC-SX-MMD MO-C-S85123-3CLM SFP 1.25Gb/s 850nm 550m LC MM C VCSEL/PIN -9~-4dBm -18dBm 9dB 0°C ~ 70°C DDMI
GLC-LH-SMD MO-C-S31123CDL20 SFP 1.25Gb/s 1310nm 20km LC SM C FP/PIN -9~-3dBm -25dBm 16dB 0°C ~ 70°C DDMI

GLC-EX-SMD MO-GLC-EX-SMD SFP 1.25Gb/s 1310nm 40km LC SM C FP/PIN -5~0dBm -25dBm 20dB 0°C ~ 70°C DDMI
GLC-ZX-SMD MO-GLC-ZX-SMD SFP 1.25Gb/s 1550nm 80km LC SM C DFB/PIN 0~5dBm -25dBm 25dB 0°C ~ 70°C DDMI
GLC-BX-U MO-C-B35121-3CL10 SFP 1.25Gb/s 1310Tx/1490Rx 20km LC SM I FP/PIN -9~-3dBm -25dBm 16dB -40°C ~ 85°C DDMI
GLC-BX-D MO-C-B43121-3CL10 SFP 1.25Gb/s 1490Tx/1310Rx 20km LC SM I DFB/PIN -9~-3dBm -25dBm 16dB -40°C ~ 85°C DDMI

10GB

Cisco MPN Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component TX power RX sens Optical power Temp. range DDMI
SFP-10G-SR MO-CS851X3-3CDLM SFP+ 10Gb/s 850nm 300m LC MM C VCSEL/PIN -7.3~-1dBm -9.9dBm 2.6dB 0°C ~ 70°C DDMI
SFP-10G-LRM MO-SFP-10G-LRM SFP+ 10Gb/s 1310nm 220m LC MM/SM C FP/PIN -8.2~0.5dBm -8.5dBm 0.3dB 0°C ~ 70°C DDMI
SFP-10G-LR MO-C-S311X2-3CDL10 SFP+ 10Gb/s 1310nm 10km LC SM C DFB/PIN -8.2~0.5dBm -14.4dBm 6.2dB 0°C ~ 70°C DDMI

SFP-10G-ER MO-SFP-10G-ER SFP+ 10Gb/s 1550nm 40km LC SM C EML/PIN -1~4dBm -16dBm 15dB 0°C ~ 70°C DDMI
SFP-10G-ZR MO-SFP-10G-ZR SFP+ 10Gb/s 1550nm 80km LC SM C EML/APD 0~4dBm -24dBm 24dB 0°C ~ 70°C DDMI
XFP-10G-MM-SR MO-XFP-10G-MM-SR XFP 10Gb/s 850nm 300m LC MM C VCSEL/PIN -5~-1dBm -11.1dBm 6.1dB 0°C ~ 70°C DDMI

XFP-10GLR-OC192SR MO-XFP-10GLR-OC192SR XFP 10Gb/s 1310nm 10km LC SM C DFB/PIN -6~-1dBm -14.4dBm 8.4dB 0°C ~ 70°C DDMI
XFP-10GZR-OC192LR MO-XFP-10GZR-OC192LR XFP 9.95-11.3Gb/s 1550nm 40km LC SM I EML/PIN -1~4dBm -16dBm 15dB -40°C ~ 85°C DDMI
SFP-10G-BX-U-10-I MO-SFP-10G-BX-U-10-I SFP+ 10Gb/s 1270Tx/1330Rx 10km LC SM I DFB/PIN -2~3dBm -13dBm 11dB -40°C ~ 85°C DDMI

SFP-10G-BX-D-10-I MO-SFP-10G-BX-D-10-I SFP+ 10Gb/s 1330Tx/1270Rx 10km LC SM I DFB/PIN -2~3dBm -13dBm 11dB -40°C ~ 85°C DDMI
SFP-10G-T-X MO-SFP-10G-T SFP+ 10Gb/s 30m RJ45 Copper C - N/A N/A N/A 0°C ~ 70°C -

®
