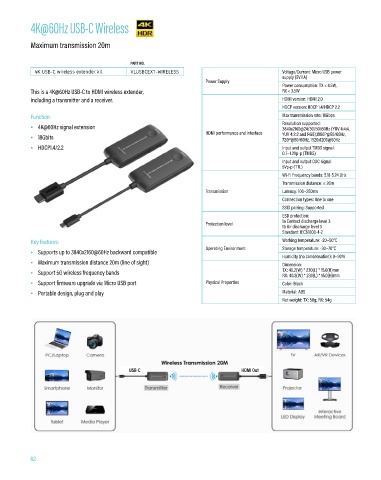

Page 64 - Vivolink_Catalogue_2024

4K@60Hz USB-C Wireless

Maximum transmission 20m

PART NO.
4K USB-C wireless extender kit VLUSBCEXT-WIRELESS Voltage/Current: Micro USB power
supply (5V/1A)
Power Supply
Power consumption: TX < 4.5W,
This is a 4K@60Hz USB-C to HDMI wireless extender, RX < 3.5W
including a transmitter and a receiver. HDMI version: HDMI 2.0
HDCP version: HDCP 1.4/HDCP 2.2
Function: Max transmission rate: 18Gbps
Resolution supported:
• 4K@60Hz signal extension 3840x2160@24/30/50/60Hz (YUV 4:4:4,
HDMI performance and interface YUV 4:2:2 and RGB),1080P@50/60Hz,
• 18Gbits 720P@50/60Hz, 1920x1200@60Hz
• HDCP1.4/2.2 Input and output TMDS signal:
0.7~1.2Vp-p (TMDS)
Input and output DDC signal:
5Vp-p (TTL)
Wi-Fi Frequency bands: 5.18-5.24 GHz
Transmission distance: ≤ 20m
Transmission Latency: 100~250ms
Connection types: One to one
SSID pairing: Supported
ESD protection:
1a Contact discharge level 3
Protection level 1b Air discharge level 3
Standard: IEC61000-4-2
Key features: Working temperature: -20~50°C
Operating Environment Storage temperature: -30~70°C
• Supports up to 3840x2160@60Hz backward compatible
Humidity (no condensation): 0~90%
• Maximum transmission distance 20m (line of sight) Dimension:
• Support 5G wireless frequency bands TX: 40.2(W) * 230(L) * 15.0(H)mm
RX: 40.2(W) * 230(L) * 15.0(H)mm
• Support firmware upgrade via Micro USB port Physical Properties Color: Black
• Portable design, plug and play Material: ABS
Net weight: TX: 58g; RX: 54g

USB-C HDMI Out
