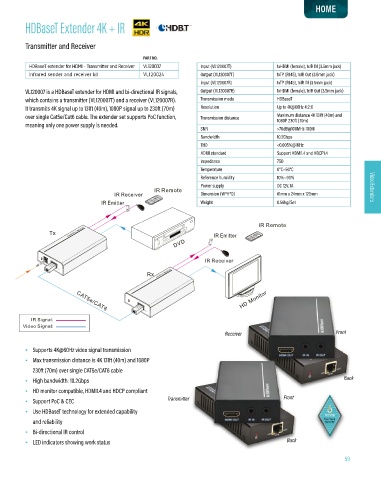

Page 61 - Vivolink_Catalogue_2024

HOME

HDBaseT Extender 4K + IR

Transmitter and Receiver

PART NO.
HDBaseT extender for HDMI - Transmitter and Receiver VL120007 Input (VL120007T) 1xHDMI (female), 1xIR IN (3.5mm jack)
Infrared sender and receiver kit VL120024 Output (VL120007T) 1xTP (RJ45), 1xIR Out (3.5mm jack)
Input (VL120007R) 1xTP (RJ45), 1xIR IN (3.5mm jack)
VL120007 is a HDBaseT extender for HDMI and bi-directional IR signals, Output (VL120007R) 1xHDMI (female), 1xIR Out (3.5mm jack)
which contains a transmitter (VL120007T) and a receiver (VL120007R). Transmission mode HDBaseT
It transmits 4K signal up to 131ft (40m), 1080P signal up to 230ft (70m) Resolution Up to 4K@60Hz 4:2:0
over single Cat5e/Cat6 cable. The extender set supports PoC function, Transmission distance Maximum distance 4K 131ft (40m) and
1080P 230ft (70m)
meaning only one power supply is needed. SNR >70dB@100MHz-100M
Bandwidth 10.2Gbps
THD <0.005%@1KHz
HDMI standard Support HDMI1.4 and HDCP1.4
Impedance 75Ω
Temperature 0°C~50°C
Reference humidity 10%~90%
Power supply DC 12V, 1A
IR Remote Video Extenders
IR Receiver Dimension (W*H*D) 61mm x 24mm x 120mm
IR Emitter Weight 0.56kg/Set

IR Remote
Tx IR Emitter
DVD

IR Receiver

Rx

HD Monitor

CAT5e/CAT6
IR Signal:
Video Signal:
Receiver Front

• Supports 4K@60Hz video signal transmission
• Max transmission distance is 4K 131ft (40m) and 1080P
230ft (70m) over single CAT5e/CAT6 cable
• High bandwidth: 10.2Gbps Back
• HD monitor compatible, HDMI1.4 and HDCP compliant
• Support PoC & CEC Transmitter Front
Vivolink keeps your system running
• Use HDBaseT technology for extended capability If you face any problems with your Vivolink product, we
immediately send you a new one. No need to wait for a
and reliability Free Swap faulty product to be repaired.
Warranty
This is part of our Premium Professional Service.
• Bi-directional IR control
• LED indicators showing work status Back

59
