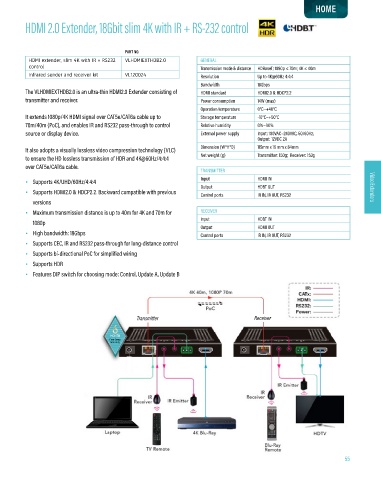

HDMI 2.0 Extender, 18Gbit slim 4K with IR + RS-232 control

PART NO.
HDMI extender, slim 4K with IR + RS232 VLHDMIEXTHDB2.0 GENERAL
control Transmission mode & distance HDBaseT; 1080p ≤ 70m; 4K ≤ 40m
Infrared sender and receiver kit VL120024 Resolution Up to 4K@60Hz 4:4:4
Bandwidth 18Gbps
The VLHDMIEXTHDB2.0 is an ultra-thin HDMI2.0 Extender consisting of HDMI standard HDMI2.0 & HDCP2.2
transmitter and receiver. Power consumption 14W (max)
Operation temperature 0°C~+40°C
It extends 1080p/4K HDMI signal over CAT5e/CAT6a cable up to Storage temperature -10°C~+50°C
70m/40m (PoC), and enables IR and RS232 pass-through to control Relative humidity 0%~90%
source or display device. External power supply Input: 100VAC~240VAC, 50/60Hz;
Output: 12VDC 2A
It also adopts a visually lossless video compression technology (VLC) Dimension (W*H*D) 115mm x 16 mm x 84mm
to ensure the HD lossless transmission of HDR and 4K@60Hz/4:4:4 Net weight (g) Transmitter: 150g; Receiver: 153g
over CAT5e/CAT6a cable.
TRANSMITTER
• Supports 4K/UHD/60Hz/4:4:4 Input HDMI IN
Output HDBT OUT Video Extenders
• Supports HDMI2.0 & HDCP2.2. Backward compatible with previous Control ports IR IN, IR OUT, RS232
versions
• Maximum transmission distance is up to 40m for 4K and 70m for RECEIVER
Input HDBT IN
1080p
Output HDMI OUT
• High bandwidth: 18Gbps Control ports IR IN, IR OUT, RS232
• Supports CEC, IR and RS232 pass-through for long-distance control
• Supports bi-directional PoC for simplified wiring
• Supports HDR
• Features DIP switch for choosing mode: Control, Update A, Update B

Transmitter Receiver
Vivolink keeps your system running
If you face any problems with your Vivolink product, we
immediately send you a new one. No need to wait for a
Free Swap faulty product to be repaired.
Warranty
This is part of our Premium Professional Service.
