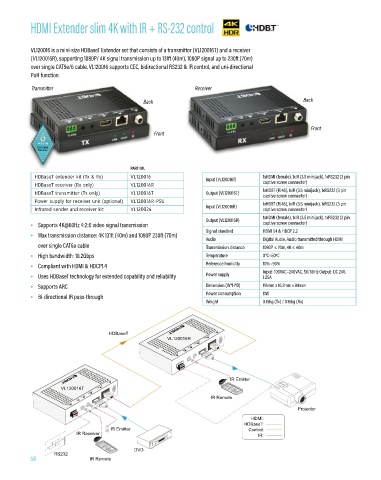

HDMI Extender slim 4K with IR + RS-232 control

VL120016 is a mini-size HDBaseT Extender set that consists of a transmitter (VL120016T) and a receiver
(VL120016R), supporting 1080P/ 4K signal transmission up to 131ft (40m), 1080P signal up to 230ft (70m)
over single CAT5e/6 cable. VL120016 supports CEC, bidirectional RS232 & IR control, and uni-directional
PoH function.
Transmitter Receiver

Back Back

Front
Front
Vivolink keeps your system running
If you face any problems with your Vivolink product, we
immediately send you a new one. No need to wait for a
Free Swap faulty product to be repaired.
Warranty
This is part of our Premium Professional Service.
PART NO.
HDBaseT extender kit (Tx & Rx) VL120016 1xHDMI (female), 1xIR (3.5 minijack), 1xRS232 (3 pin
Input (VL120016T) captive screw connector)
HDBaseT receiver (Rx only) VL120016R
HDBaseT transmitter (Tx only) VL120016T Output (VL120016T) 1xHDBT (RJ45), 1xIR (3.5 minijack), 1xRS232 (3 pin
captive screw connector)
Power supply for receiver unit (optional) VL120016R-PSU 1xHDBT (RJ45), 1xIR (3.5 minijack), 1xRS232 (3 pin
Input (VL120016R)
Infrared sender and receiver kit VL120024 captive screw connector)
Output (VL120016R) 1xHDMI (female), 1xIR (3.5 minijack), 1xRS232 (3 pin
• Supports 4K@60Hz 4:2:0 video signal transmission captive screw connector)
Signal standard HDMI 1.4 & HDCP 2.2
• Max transmission distance: 4K 131ft (40m) and 1080P 230ft (70m)
Audio Digital Audio, Audio transmitted through HDMI
over single CAT6a cable Transmission distance 1080P ≤ 70m, 4K ≤ 40m
• High bandwidth: 10.2Gbps Temperature 0°C~50ºC
• Compliant with HDMI & HDCP1.4 Reference humidity 10%~90%
• Uses HDBaseT technology for extended capability and reliability Power supply Input: 100VAC~240VAC, 50/60Hz Output: DC 24V,
1.25A
• Supports ARC Dimension (W*H*D) 115mm x 16.2mm x 84mm
• Bi-directional IR pass-through Power consumption 11W
Weight 0.15kg (Tx) / 0.15kg (Rx)

HDBaseT
VL120016R

IR Emitter
VL120016T
IR Remote
Projector
HDMI:
HDBaseT:
IR Emitter Control:
IR Receiver IR:

DVD
RS232
