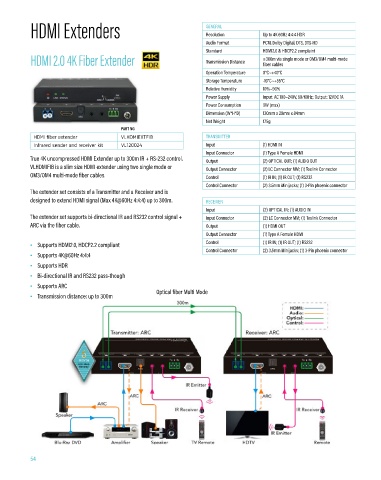

Page 56 - Vivolink_Catalogue_2024

HDMI Extenders GENERAL Up to 4K 60Hz 4:4:4 HDR

Resolution
Audio Format PCM, Dolby Digital, DTS, DTS-HD
Standard HDMI2.0 & HDCP2.2 complaint
HDMI 2.0 4K Fiber Extender Transmission Distance ≤300m via single mode or OM3/OM4 multi-mode
fiber cables
Operation Temperature 0°C~+40°C
Storage Temperature -10°C~+55°C
Relative Humidity 10%~90%
Power Supply Input: AC 100~240V, 50/60Hz; Output: 12VDC 1A
Power Consumption 9W (max)
Dimension (W*H*D) 130mm x 20mm x 84mm
Net Weight 175g
PART NO.
HDMI fiber extender VLHDMIEXTFIB TRANSMITTER
Infrared sender and receiver kit VL120024 Input (1) HDMI IN
Input Connector (1) Type A Female HDMI
True 4K uncompressed HDMI Extender up to 300m IR + RS-232 control. Output (2) OPTICAL OUT; (1) AUDIO OUT
VLHDMIFIB is a slim size HDMI extender using two single mode or Output Connector (2) LC Connector MM; (1) Toslink Connector
OM3/OM4 multi-mode fiber cables. Control (1) IR IN; (1) IR OUT; (1) RS232

Control Connector (2) 3.5mm Minijacks; (1) 3-Pin phoenix connector
The extender set consists of a Transmitter and a Receiver and is
designed to extend HDMI signal (Max 4K@60Hz 4:4:4) up to 300m. RECEIVER
Input (2) OPTICAL IN; (1) AUDIO IN
The extender set supports bi-directional IR and RS232 control signal + Input Connector (2) LC Connector MM; (1) Toslink Connector
ARC via the fiber cable. Output (1) HDMI OUT
Output Connector (1) Type A Female HDMI
• Supports HDMI2.0, HDCP2.2 compliant Control (1) IR IN; (1) IR OUT; (1) RS232
Control Connector (2) 3.5mm Minijacks; (1) 3-Pin phoenix connector
• Supports 4K@60Hz 4:4:4
• Supports HDR
• Bi-directional IR and RS232 pass-though
• Supports ARC
• Transmission distance: up to 300m Optical fiber Multi Mode

Vivolink keeps your system running
If you face any problems with your Vivolink product, we
immediately send you a new one. No need to wait for a
Free Swap faulty product to be repaired.
Warranty
This is part of our Premium Professional Service.
