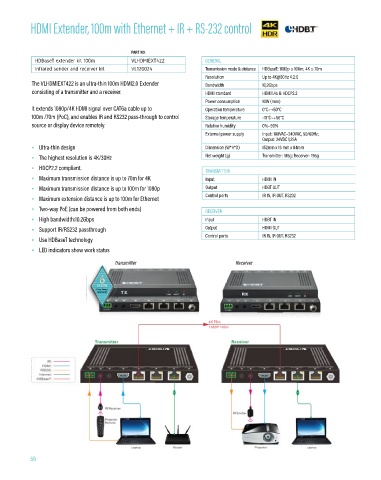

HDMI Extender, 100m with Ethernet + IR + RS-232 control

PART NO.
HDBaseT extender kit 100m VLHDMIEXT422 GENERAL
Infrared sender and receiver kit VL120024 Transmission mode & distance HDBaseT; 1080p ≤ 100m; 4K ≤ 70m
Resolution Up to 4K@60Hz 4:2:0
The VLHDMIEXT422 is an ultra-thin 100m HDMI2.0 Extender Bandwidth 10,2Gbps
consisting of a transmitter and a receiver. HDMI standard HDMI1.4a & HDCP2.2
Power consumption 10W (max)
It extends 1080p/4K HDMI signal over CAT6a cable up to Operation temperature 0°C~+50°C
100m /70m (PoC), and enables IR and RS232 pass-through to control Storage temperature -10°C~+50°C
source or display device remotely. Relative humidity 0%~90%
External power supply Input: 100VAC~240VAC, 50/60Hz;
Output: 24VDC 1,25A
• Ultra-thin design Dimension (W*H*D) 152mm x 16 mm x 84mm
• The highest resolution is 4K/30Hz Net weight (g) Transmitter: 186g; Receiver: 196g
• HDCP2.2 compliant. TRANSMITTER
• Maximum transmission distance is up to 70m for 4K Input HDMI IN
• Maximum transmission distance is up to 100m for 1080p Output HDBT OUT
• Maximum extension distance is up to 100m for Ethernet Control ports IR IN, IR OUT, RS232
• Two-way PoE (can be powered from both ends) RECEIVER
• High bandwidth:10.2Gbps Input HDBT IN
• Support IR/RS232 passthrough Output HDMI OUT
Control ports IR IN, IR OUT, RS232
• Use HDBaseT technology
• LED indicators show work status
Transmitter Receiver
