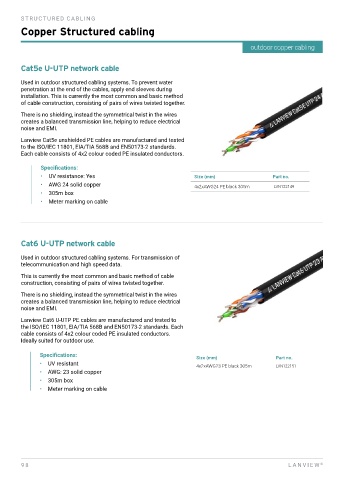

Page 98 - Lanview_Product_Catalogue_2024

S TRU CT U R ED CA BLING

Copper Structured cabling

outdoor copper cabling

Cat5e U-UTP network cable

Used in outdoor structured cabling systems. To prevent water
penetration at the end of the cables, apply end sleeves during
installation. This is currently the most common and basic method
of cable construction, consisting of pairs of wires twisted together.
There is no shielding, instead the symmetrical twist in the wires
creates a balanced transmission line, helping to reduce electrical
noise and EMI.

Lanview Cat5e unshielded PE cables are manufactured and tested
to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards.
Each cable consists of 4x2 colour coded PE insulated conductors.

Specifications:
• UV resistance: Yes Size (mm) Part no.
• AWG 24 solid copper 4x2xAWG24 PE black 305m LVN122149
• 305m box
• Meter marking on cable

Cat6 U-UTP network cable

Used in outdoor structured cabling systems. For transmission of
telecommunication and high speed data.

This is currently the most common and basic method of cable
construction, consisting of pairs of wires twisted together.

There is no shielding, instead the symmetrical twist in the wires
creates a balanced transmission line, helping to reduce electrical
noise and EMI.
Lanview Cat6 U-UTP PE cables are manufactured and tested to
the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each
cable consists of 4x2 colour coded PE insulated conductors.
Ideally suited for outdoor use.

Specifications: Size (mm) Part no.
• UV resistant 4x2xAWG23 PE black 305m LVN122151
• AWG: 23 solid copper
• 305m box
• Meter marking on cable
