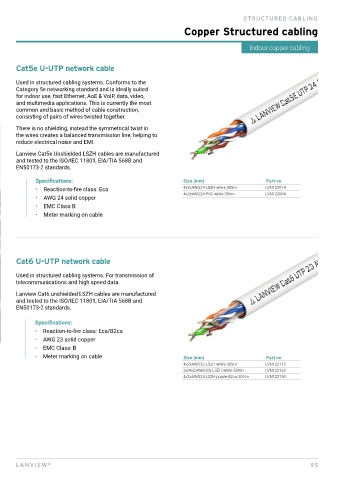

Page 95 - Lanview_Product_Catalogue_2024

S TRU CT U R ED CA BLING

Copper Structured cabling

Indoor copper cabling

Cat5e U-UTP network cable

Used in structured cabling systems. Conforms to the
Category 5e networking standard and is ideally suited
for indoor use, fast Ethernet, AoE & VoIP, data, video,
and multimedia applications. This is currently the most
common and basic method of cable construction,
consisting of pairs of wires twisted together.
There is no shielding, instead the symmetrical twist in
the wires creates a balanced transmission line, helping to
reduce electrical noise and EMI.

Lanview Cat5e Unshielded LSZH cables are manufactured
and tested to the ISO/IEC 11801, EIA/TIA 568B and
EN50173-2 standards.

Specifications: Size (mm) Part no.
• Reaction-to-fire class: Eca 4x2xAWG24 LSZH white 305m LVN122014
4x2xAWG24 PVC white 305m LVN122004
• AWG 24 solid copper
• EMC Class B
• Meter marking on cable

Cat6 U-UTP network cable

Used in structured cabling systems. For transmission of
telecommunications and high speed data.

Lanview Cat6 unshielded LSZH cables are manufactured
and tested to the ISO/IEC 11801, EIA/TIA 568B and
EN50173-2 standards.

Specifications:
• Reaction-to-fire class: Eca/B2ca
• AWG 23 solid copper
• EMC Class: B
• Meter marking on cable Size (mm) Part no.
4x2xAWG23 LSZH white 305m LVN122112
2x(4x2xAWG23) LSZH white 500m LVN122162
4x2xAWG24 LSZH purple B2ca 305 m LVN122150
