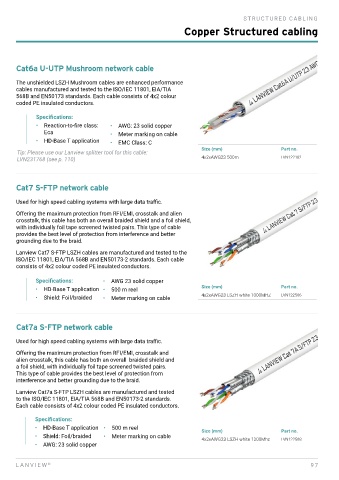

Page 97 - Lanview_Product_Catalogue_2024
P. 97
S TRU CT U R ED CA BLING
Copper Structured cabling
Cat6a U-UTP Mushroom network cable
The unshielded LSZH Mushroom cables are enhanced performance
cables manufactured and tested to the ISO/IEC 11801, EIA/TIA
568B and EN50173 standards. Each cable consists of 4x2 colour
coded PE insulated conductors.
Specifications:
• Reaction-to-fire class: • AWG: 23 solid copper
Eca • Meter marking on cable
• HD-Base T application • EMC Class: C
Tip: Please use our Lanview splitter tool for this cable: Size (mm) Part no.
LVN231768 (see p. 110) 4x2xAWG23 500m LVN122182
Cat7 S-FTP network cable
Used for high speed cabling systems with large data traffic.
Offering the maximum protection from RFI/EMI, crosstalk and alien
crosstalk, this cable has both an overall braided shield and a foil shield,
with individually foil tape screened twisted pairs. This type of cable
provides the best level of protection from interference and better
grounding due to the braid.
Lanview Cat7 S-FTP LSZH cables are manufactured and tested to the
ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable
consists of 4x2 colour coded PE insulated conductors.
Specifications: • AWG 23 solid copper
• HD-Base T application • 500 m reel Size (mm) Part no.
• Shield: Foil/braided • Meter marking on cable 4x2xAWG23 LSZH white 1000MHZ LVN122506
Cat7a S-FTP network cable
Used for high speed cabling systems with large data traffic.
Offering the maximum protection from RFI/EMI, crosstalk and
alien crosstalk, this cable has both an overall braided shield and
a foil shield, with individually foil tape screened twisted pairs.
This type of cable provides the best level of protection from
interference and better grounding due to the braid.
Lanview Cat7a S-FTP LSZH cables are manufactured and tested
to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards.
Each cable consists of 4x2 colour coded PE insulated conductors.
Specifications:
• HD-Base T application • 500 m reel Size (mm) Part no.
• Shield: Foil/braided • Meter marking on cable 4x2xAWG23 LSZH white 1200Mhz LVN122508
• AWG: 23 solid copper
