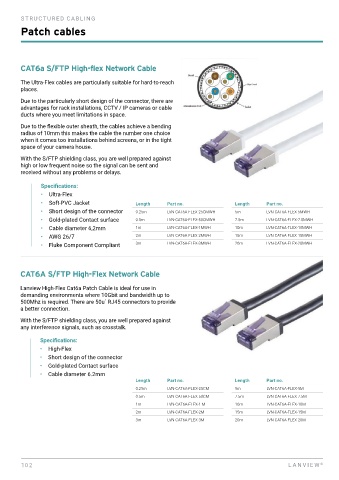

Page 102 - Lanview_Product_Catalogue_2024

High-flex Outdoor Patch Cables
Low Smoke Zero Halogen
Cat6a High-Flex Outdoor Network Cable, with a compact plug
and boot, are designed to be used in 10-Gigabit applications Length MPN Length MPN
and can run all frequencies from 1 to 500 MHz. 1m LVN601SOUT 15m LVN6015SOUT
S TRU CT U R ED CA BLING 2m LVN602SOUT 20m LVN6020SOUT
The Patch cord o‰ers flexible, high-density patching and is
designed for industrial or outdoor environments and is the 3m LVN603SOUT 25m LVN6025SOUT
Patch cables 5m LVN605SOUT 30m LVN6030SOUT
installers choice due to the Slim RJ45 connector witch suits in
devices with a very high port density.
7,5m LVN607,5SOUT 40m LVN6040SOUT
The cables shielding makes it Ideal for protection against 10m 50m
electromagnetic interference thanks to pair screening with LVN6010SOUT LVN6050SOUT
aluminum compound foil and copper braiding as overall
screening of the Highest quality, the double screening ensures
high transmission reliability in areas with electromagnetic
interference.
CAT6a S/FTP High-flex Network Cable
The wires are wrapped in a PUR halogen free Jacket ideal for
harsh areas with great benefits of UV and oil resistance
suitable for Voice, Data, Video applications.
The Ultra-Flex cables are particularly suitable for hard-to-reach
places.
Due to the particularly short design of the connector, there are
advantages for rack installations, CCTV / IP cameras or cable
ducts where you meet limitations in space.
•
Hazardous substances-Free: Directive 2011/65/EU + 2015/863/EU
Due to the flexible outer sheath, the cables achieve a bending
radius of 10mm this makes the cable the number one choice
•
PUR, Halogen-free Jacket
when it comes too installations behind screens, or in the tight
•
Great Flexibility
space of your camera house.
•
Chemical & Hydrolysis resistance: DIN53504
•
With the S/FTP shielding class, you are well prepared against
Oil resistance: EN 60811-2-1
high or low frequent noise so the signal can be sent and
•
Fluke DSX-8000 Channel Compliant
received without any problems or delays.
•
AWG 26
• Cable diameter 6mm
Specifications:
• Ultra-Flex
• Soft-PVC Jacket Length Part no. Length Part no.
• Short design of the connector 0.25m LVN-CAT6A-FLEX-25CMWH 5m LVN-CAT6A-FLEX-5MWH
• Gold-plated Contact surface 0.5m LVN-CAT6A-FLEX-50CMWH 7.5m LVN-CAT6A-FLEX-7.5MWH
• Cable diameter 6,2mm 1m LVN-CAT6A-FLEX-1MWH 10m LVN-CAT6A-FLEX-10MWH
• AWG 26/7 2m LVN-CAT6A-FLEX-2MWH 15m LVN-CAT6A-FLEX-15MWH
• Fluke Component Compliant 3m LVN-CAT6A-FLEX-3MWH 20m LVN-CAT6A-FLEX-20MWH
CAT6A S/FTP High-Flex Network Cable

Lanview High-Flex Cat6a Patch Cable is ideal for use in
demanding environments where 10Gbit and bandwidth up to
500Mhz is required. There are 50u´ RJ45 connectors to provide
a better connection.
With the S/FTP shielding class, you are well prepared against
any interference signals, such as crosstalk.

Specifications:
• High-Flex
• Short design of the connector
• Gold-plated Contact surface
• Cable diameter 6.2mm
Length Part no. Length Part no.
0.25m LVN-CAT6A-FLEX-25CM 5m LVN-CAT6A-FLEX-5M
0.5m LVN-CAT6A-FLEX-50CM 7.5m LVN-CAT6A-FLEX-7.5M
1m LVN-CAT6A-FLEX-1 M 10m LVN-CAT6A-FLEX-10M
2m LVN-CAT6A-FLEX-2M 15m LVN-CAT6A-FLEX-15M
3m LVN-CAT6A-FLEX-3M 20m LVN-CAT6A-FLEX-20M

10 2 L A N V I E W ®
