TR A NSCEIV ERS

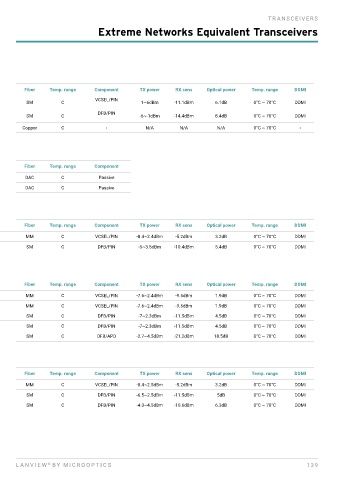

Extreme Networks Equivalent Transceivers
Extreme Networks
MPN Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component TX power RX sens Optical power Temp. range DDMI
VCSEL/PIN
10121 MO-10121 SFP+ 10Gb/s 850nm 300m LC SM C 1~6dBm -11.1dBm 6.1dB 0°C ~ 70°C DDMI
10122 MO-10122 SFP+ 10Gb/s 1310nm 10km LC SM C DFB/PIN -6~-1dBm -14.4dBm 8.4dB 0°C ~ 70°C DDMI
10338 MO-10338 SFP+ 10Gb/s 30m RJ45 Copper C - N/A N/A N/A 0°C ~ 70°C -
Extreme Networks
MPN Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component
10304 MO-10304 SFP+ 10Gb/s Twinax Copper 1m SFP+ DAC C Passive
10305 MO-10305 SFP+ 10Gb/s Twinax Copper 3m SFP+ DAC C Passive
Extreme Networks Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component TX power RX sens Optical power Temp. range DDMI
MPN
10501 MO-10501 SFP28 25Gb/s 850nm 100m LC MM C VCSEL/PIN -8.4~2.4dBm -5.2dBm 3.2dB 0°C ~ 70°C DDMI
10504 MO-10504 SFP28 25Gb/s 1310nm 10km LC SM C DFB/PIN -5~3.5dBm -10.4dBm 5.4dB 0°C ~ 70°C DDMI
Extreme Networks
MPN Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component TX power RX sens Optical power Temp. range DDMI
10319 MO-10319 QSFP+ 40Gb/s 850nm 100m MTP/MPO MM C VCSEL/PIN -7.6~2.4dBm -9.5dBm 1.9dB 0°C ~ 70°C DDMI
40GB-ESR4-QSFP MO-40GB-ESR4-QSFP QSFP+ 40Gb/s 850nm 300m MTP/MPO MM C VCSEL/PIN -7.6~2.4dBm -9.5dBm 1.9dB 0°C ~ 70°C DDMI
10320 MO-10320 QSFP+ 40Gb/s 1270/1290/1310/1330nm 10km LC SM C DFB/PIN -7~2.3dBm -11.5dBm 4.5dB 0°C ~ 70°C DDMI
10326 MO-10326 QSFP+ 40Gb/s 1310nm 10km MTP/MPO SM C DFB/PIN -7~2.3dBm -11.5dBm 4.5dB 0°C ~ 70°C DDMI
10335 MO-10335 QSFP+ 40Gb/s 1270/1290/1310/1330nm 40km LC SM C DFB/APD -2.7~4.5dBm -21.2dBm 18.5dB 0°C ~ 70°C DDMI
Extreme Networks Lanview MPN Form factor Data rate Wavelength Distance Connector Fiber Temp. range Component TX power RX sens Optical power Temp. range DDMI
MPN
10401 MO-10401 QSFP28 100Gb/s 850nm 100m MTP/MPO MM C VCSEL/PIN -8.4~2.5dBm -5.2dBm 3.2dB 0°C ~ 70°C DDMI
10404 MO-10401 QSFP28 100Gb/s 1271/1291/1311/1331nm 2km LC SM C DFB/PIN -6.5~2.5dBm -11.5dBm 5dB 0°C ~ 70°C DDMI
10403 MO-10401 QSFP28 100Gb/s 1296/1300/1305/1309nm 10km LC SM C DFB/PIN -4.3~4.5dBm -10.6dBm 6.3dB 0°C ~ 70°C DDMI
