R ACKS, CA BINE TS & ACCES SORIES

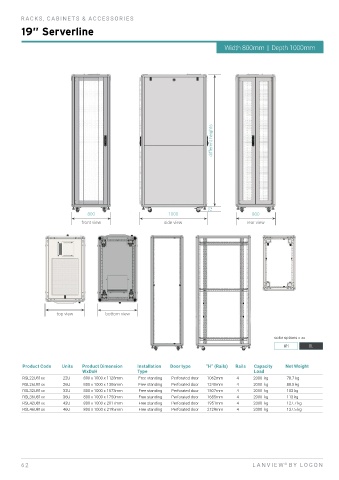

19” Serverline
Width 800mm | Depth 1000mm
different heights
72
800 1000 800
front view side view rear view
top view bottom view
color options = xx
WH BL
Product Code Units Product Dimension Installation Door type “H” (Rails) Rails Capacity Net Weight
WxDxH Type Load
RSL22U81xx 22U 800 x 1000 x 1128mm Free standing Perforated door 1062mm 4 2000 kg 78.7 kg
RSL26U81xx 26U 800 x 1000 x 1306mm Free standing Perforated door 1240mm 4 2000 kg 88.5 kg
RSL32U81xx 32U 800 x 1000 x 1573mm Free standing Perforated door 1507mm 4 2000 kg 103 kg
RSL36U81xx 36U 800 x 1000 x 1750mm Free standing Perforated door 1685mm 4 2000 kg 113 kg
RSL42U81xx 42U 800 x 1000 x 2017mm Free standing Perforated door 1951mm 4 2000 kg 127.7 kg
RSL46U81xx 46U 800 x 1000 x 2195mm Free standing Perforated door 2129mm 4 2000 kg 137.5 kg
®
