Page 61 - Lanview_Product_Catalogue_2024
P. 61
R ACKS, CA BINE TS & ACCES SORIES

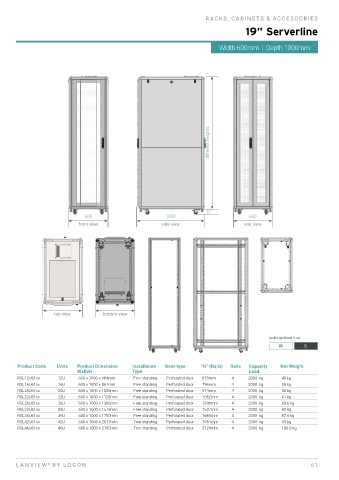

19” Serverline
Width 600mm | Depth 1000mm
different heights
72
600 1000 600
front view side view rear view
top view bottom view
color options = xx
WH BL
Product Code Units Product Dimension Installation Door type “H” (Rails) Rails Capacity Net Weight
WxDxH Type Load
RSL12U61xx 12U 600 x 1000 x 684mm Free standing Perforated door 618mm 4 2000 kg 49 kg
RSL16U61xx 16U 600 x 1000 x 861mm Free standing Perforated door 796mm 4 2000 kg 55 kg
RSL20U61xx 20U 600 x 1000 x 1039mm Free standing Perforated door 974mm 4 2000 kg 58 kg
RSL22U61xx 22U 600 x 1000 x 1128mm Free standing Perforated door 1062mm 4 2000 kg 61 kg
RSL26U61xx 26U 600 x 1000 x 1306mm Free standing Perforated door 1240mm 4 2000 kg 68.6 kg
RSL32U61xx 32U 600 x 1000 x 1573mm Free standing Perforated door 1507mm 4 2000 kg 80 kg
RSL36U61xx 36U 600 x 1000 x 1750mm Free standing Perforated door 1685mm 4 2000 kg 87.6 kg
RSL42U61xx 42U 600 x 1000 x 2017mm Free standing Perforated door 1951mm 4 2000 kg 99 kg
RSL46U61xx 46U 600 x 1000 x 2195mm Free standing Perforated door 2129mm 4 2000 kg 106.6 kg
L A N V I E W B Y L O G O N 61
®
