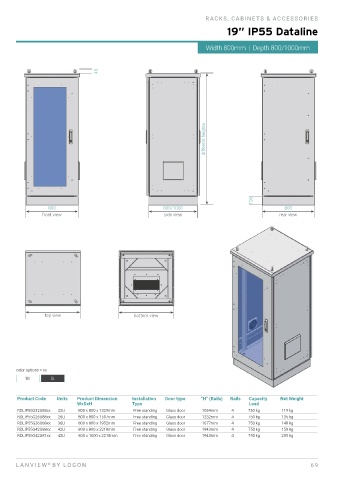

Page 69 - Lanview_Product_Catalogue_2024
P. 69
R ACKS, CA BINE TS & ACCES SORIES
19” IP55 Dataline
Width 800mm | Depth 800/1000mm
45
different heights
100
800 800/1000 800
front view side view rear view
top view bottom view
color options = xx
WH BL
Product Code Units Product Dimension Installation Door type “H” (Rails) Rails Capacity Net Weight
WxDxH Type Load
RDLIP55G22U88xx 22U 800 x 800 x 1329mm Free standing Glass door 1054mm 4 750 kg 119 kg
RDLIP55G26U88xx 26U 800 x 800 x 1507mm Free standing Glass door 1232mm 4 750 kg 135 kg
RDLIP55G36U88xx 36U 800 x 800 x 1952mm Free standing Glass door 1677mm 4 750 kg 148 kg
RDLIP55G42U88xx 42U 800 x 800 x 2218mm Free standing Glass door 1943mm 4 750 kg 159 kg
RDLIP55G42U81xx 42U 800 x 1000 x 2218mm Free standing Glass door 1943mm 4 750 kg 205 kg
L A N V I E W B Y L O G O N 69
®
