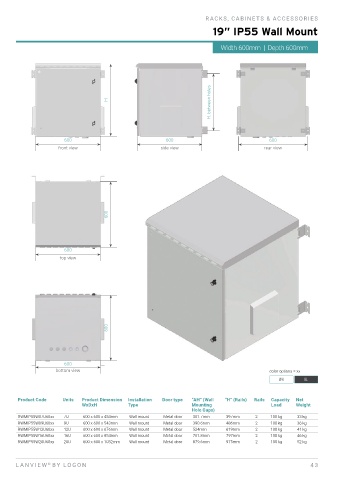

R ACKS, CA BINE TS & ACCES SORIES
19” IP55 Wall Mount
Width 600mm | Depth 600mm
H. between holes
H
600 600 600
front view side view rear view
600
600
top view
600
600
bottom view color options = xx
WH BL
Product Code Units Product Dimension Installation Door type “AH” (Wall “H” (Rails) Rails Capacity Net
WxDxH Type Mounting Load Weight
Hole Gaps)
RWMIP55W07U60xx 7U 600 x 600 x 454mm Wall mount Metal door 301.7mm 397mm 2 100 kg 33 kg
RWMIP55W09U60xx 9U 600 x 600 x 543mm Wall mount Metal door 390.6mm 486mm 2 100 kg 36 kg
RWMIP55W12U60xx 12U 600 x 600 x 676mm Wall mount Metal door 524mm 619mm 2 100 kg 41 kg
RWMIP55W16U60xx 16U 600 x 600 x 854mm Wall mount Metal door 701.8mm 797mm 2 100 kg 46 kg
RWMIP55W20U60xx 20U 600 x 600 x 1032mm Wall mount Metal door 879.6mm 975mm 2 100 kg 52 kg
