R ACKS, CA BINE TS & ACCES SORIES

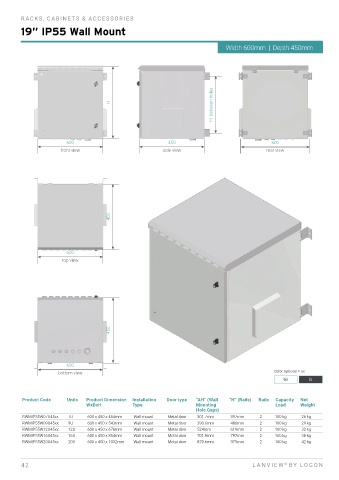

19” IP55 Wall Mount
Width 600mm | Depth 450mm
H. between holes
H
600 450 600
front view side view rear view
450
600
top view
450
600
bottom view color options = xx
WH BL
Product Code Units Product Dimension Installation Door type “AH” (Wall “H” (Rails) Rails Capacity Net
WxDxH Type Mounting Load Weight
Hole Gaps)
RWMIP55W07U45xx 7U 600 x 450 x 454mm Wall mount Metal door 301.7mm 397mm 2 100 kg 26 kg
RWMIP55W09U45xx 9U 600 x 450 x 543mm Wall mount Metal door 390.6mm 486mm 2 100 kg 29 kg
RWMIP55W12U45xx 12U 600 x 450 x 676mm Wall mount Metal door 524mm 619mm 2 100 kg 32 kg
RWMIP55W16U45xx 16U 600 x 450 x 854mm Wall mount Metal door 701.8mm 797mm 2 100 kg 38 kg
RWMIP55W20U45xx 20U 600 x 450 x 1032mm Wall mount Metal door 879.6mm 975mm 2 100 kg 42 kg
®
