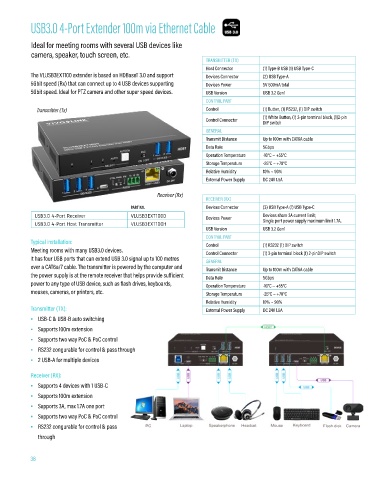

USB3.0 4-Port Extender 100m via Ethernet Cable

Ideal for meeting rooms with several USB devices like
camera, speaker, touch screen, etc.
TRANSMITTER (TX)
Host Connector (1) Type-B USB (1) USB Type-C
The VLUSB3EXT100 extender is based on HDBaseT 3.0 and support Devices Connector (2) USB Type-A
5Gbit speed (Rx) that can connect up to 4 USB devices supporting Devices Power 5V 500mA total
5Gbit speed. Ideal for PTZ camera and other super speed devices. USB Version USB 3.2 Gen1
CONTROL PART
Transmitter (Tx) Control (1) Button, (1) RS232, (1) DIP switch
(1) White Button, (1) 3-pin terminal block, (1)2-pin
Control Connector DIP switch
GENERAL
Transmit Distance Up to 100m with CAT6A cable
Data Rate 5Gbps
Operation Temperature -10°C ~ +55°C
Storage Temperature -25°C ~ +70°C
Relative Humidity 10% ~ 90%
External Power Supply DC 24V 1.5A

Receiver (Rx)
RECEIVER (RX)
PART NO. Devices Connector (3) USB Type-A (1) USB Type-C
USB3.0 4-Port Receiver VLUSB3EXT100D Devices Power Devices share 3A current limit;
USB3.0 4-Port Host Transmitter VLUSB3EXT100H Single port power supply maximum limit 1.7A.
USB Version USB 3.2 Gen1
CONTROL PART
Typical installation: Control (1) RS232 (1) DIP switch
Meeting rooms with many USB3.0 devices. Control Connector (1) 3-pin terminal block (1) 2-pinDIP switch
It has four USB ports that can extend USB 3.0 signal up to 100 metres GENERAL
over a CAT6a/7 cable. The transmitter is powered by the computer and Transmit Distance Up to 100m with CAT6A cable
the power supply is at the remote receiver that helps provide sufficient Data Rate 5Gbps
power to any type of USB device, such as flash drives, keyboards, Operation Temperature -10°C ~ +55°C
mouses, cameras, or printers, etc. Storage Temperature -25°C ~ +70°C
Relative Humidity 10% ~ 90%
Transmitter (TX): External Power Supply DC 24V 1.5A
• USB-C & USB-B auto switching
• Supports 100m extension
• Supports two way PoC & PoC control
• RS232 congurable for control & pass through
• 2 USB-A for multiple devices

Receiver (RX):
• Supports 4 devices with 1 USB-C
• Supports 100m extension
• Supports 3A, max 1.7A one port
• Supports two way PoC & PoC control
• RS232 congurable for control & pass
through
