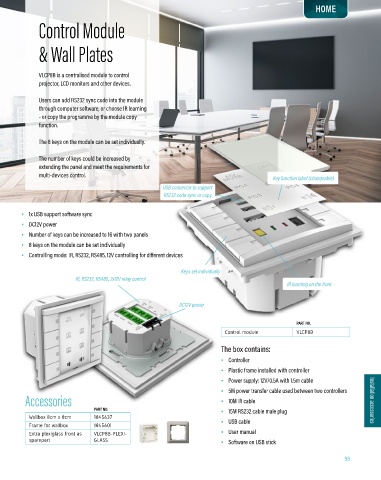

Control Module

& Wall Plates

VLCP8B is a centralised module to control
projector, LCD monitors and other devices.

Users can add RS232 sync code into the module
through computer software, or choose IR learning
- or copy the programme by the module copy
function.

The 8 keys on the module can be set individually.

The number of keys could be increased by
extending the panel and meet the requirements for
multi-devices control. Key function label (changeable)

USB connector to support
RS232 code sync or copy

• 1x USB support software sync
• DC12V power
• Number of keys can be increased to 16 with two panels
• 8 keys on the module can be set individually
• Controlling mode: IR, RS232, RS485, 12V controlling for different devices

Keys set individually
IR, RS232, RS485, 2x12V relay control
IR learning on the front

DC12V power

PART NO.
Control module VLCP8B

The box contains:
• Controller
• Plastic frame installed with controller
• Power supply: 12V/0.5A with 1.5m cable
• 5M power transfer cable used between two controllers
Accessories • 10M IR cable Installation accessories

PART NO. • 15M RS232 cable male plug
Wallbox 8cm x 8cm 1845637 • USB cable
Frame for wallbox 1845601
Extra plexiglass front as VLCP8B-PLEXI- • User manual
sparepart GLASS • Software on USB stick
