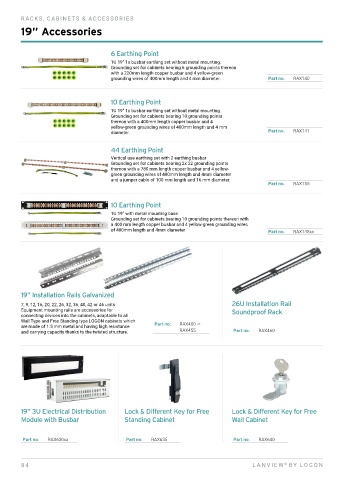

Page 84 - Lanview_Product_Catalogue_2024

R ACKS, CA BINE TS & ACCES SORIES

19” Accessories

6 Earthing Point
1U 19” 1x busbar earthing set without metal mounting.
Grounding set for cabinets bearing 6 grounding points thereon
with a 220mm length copper busbar and 4 yellow-green
grounding wires of 400mm length and 4 mm diameter. Part no. RAX140

10 Earthing Point
1U 19” 1x busbar earthing set without metal mounting.
Grounding set for cabinets bearing 10 grounding points
thereon with a 400mm length copper busbar and 4
yellow-green grounding wires of 400mm length and 4 mm
diameter. Part no. RAX141

44 Earthing Point
Vertical use earthing set with 2 earthing busbar
Grounding set for cabinets bearing 2x 22 grounding points
thereon with a 780 mm length copper busbar and 4 yellow-
green grounding wires of 400mm length and 4mm diameter
and a jumper cable of 100 mm length and 16 mm diameter.
Part no. RAX155

10 Earthing Point
1U 19” with metal mounting base
Grounding set for cabinets bearing 10 grounding points thereon with
a 400 mm length copper busbar and 4 yellow-green grounding wires
of 400mm length and 4mm diameter Part no. RAX145xx

19” Installation Rails Galvanized
7, 9, 12, 16, 20, 22, 26, 32, 36, 40, 42 or 46 units 26U Installation Rail
Equipment mounting rails are accessories for Soundproof Rack
connecting devices into the cabinets, adaptable to all
Wall Type and Free Standing type LOGON cabinets which Part no. RAX400 ->
are made of 1.5 mm metal and having high resistance
and carrying capacity thanks to the twisted structure. RAX455 Part no. RAX460

19” 3U Electrical Distribution Lock & Different Key for Free Lock & Different Key for Free
Module with Busbar Standing Cabinet Wall Cabinet

Part no. RAX630xx Part no. RAX635 Part no. RAX640

®
