Page 51 - Lanview_Product_Catalogue_2024
P. 51
R ACKS, CA BINE TS & ACCES SORIES

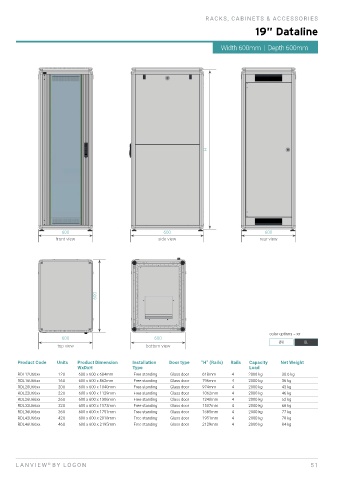

19” Dataline
Width 600mm | Depth 600mm
H
600 600 600
front view side view rear view
600
color options = xx
600 600
WH BL
top view bottom view
Product Code Units Product Dimension Installation Door type “H” (Rails) Rails Capacity Net Weight
WxDxH Type Load
RDL12U66xx 12U 600 x 600 x 684mm Free standing Glass door 618mm 4 2000 kg 30.6 kg
RDL16U66xx 16U 600 x 600 x 862mm Free standing Glass door 796mm 4 2000 kg 36 kg
RDL20U66xx 20U 600 x 600 x 1040mm Free standing Glass door 974mm 4 2000 kg 43 kg
RDL22U66xx 22U 600 x 600 x 1129mm Free standing Glass door 1062mm 4 2000 kg 46 kg
RDL26U66xx 26U 600 x 600 x 1306mm Free standing Glass door 1240mm 4 2000 kg 52 kg
RDL32U66xx 32U 600 x 600 x 1573mm Free standing Glass door 1507mm 4 2000 kg 68 kg
RDL36U66xx 36U 600 x 600 x 1751mm Free standing Glass door 1685mm 4 2000 kg 77 kg
RDL42U66xx 42U 600 x 600 x 2018mm Free standing Glass door 1951mm 4 2000 kg 78 kg
RDL46U66xx 46U 600 x 600 x 2195mm Free standing Glass door 2129mm 4 2000 kg 84 kg
L A N V I E W B Y L O G O N 5 1
®
