R ACKS, CA BINE TS & ACCES SORIES

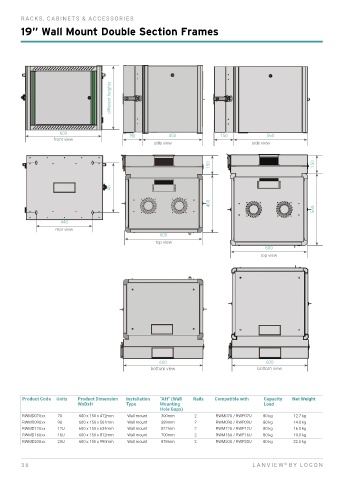

19” Wall Mount Double Section Frames
different heights
600 450 150 560
front view 150
side view side view
150 150
Ah
450
560
440
rear view
600
top view
600
top view
600 600
bottom view bottom view
Product Code Units Product Dimension Installation “AH” (Wall Rails Compatible with Capacity Net Weight
WxDxH Type Mounting Load
Hole Gaps)
RWMD07Uxx 7U 600 x 150 x 412mm Wall mount 300mm 2 RWM07U / RWP07U 80 kg 12.7 kg
RWMD09Uxx 9U 600 x 150 x 501mm Wall mount 389mm 2 RWM09U / RWP09U 80 kg 14.0 kg
RWMD12Uxx 12U 600 x 150 x 634mm Wall mount 522mm 2 RWM12U / RWP12U 80 kg 16.0 kg
RWMD16Uxx 16U 600 x 150 x 812mm Wall mount 700mm 2 RWM16U / RWP16U 80 kg 19.0 kg
RWMD20Uxx 20U 600 x 150 x 990mm Wall mount 878mm 2 RWM20U / RWP20U 80 kg 22.0 kg
