R ACKS, CA BINE TS & ACCES SORIES

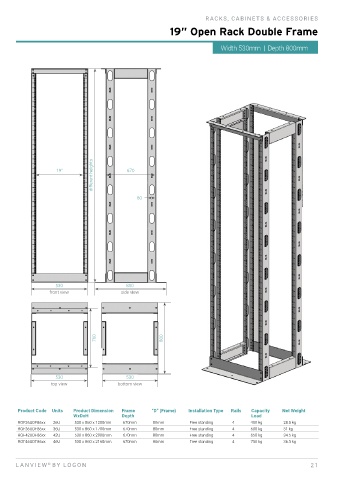

19” Open Rack Double Frame
Width 530mm | Depth 800mm
different heights
19” 670
80
530 800
front view side view
760 800
530 530
top view bottom view
Product Code Units Product Dimension Frame “D” (Frame) Installation Type Rails Capacity Net Weight
WxDxH Depth Load
ROF26UDF86xx 26U 530 x 860 x 1200mm 670mm 80mm Free standing 4 400 kg 28.5 kg
ROF36UDF86xx 36U 530 x 860 x 1700mm 670mm 80mm Free standing 4 600 kg 31 kg
ROF42UDF86xx 42U 530 x 860 x 2000mm 670mm 80mm Free standing 4 650 kg 34.5 kg
ROF46UDF86xx 46U 530 x 860 x 2160mm 670mm 80mm Free standing 4 750 kg 36.5 kg
